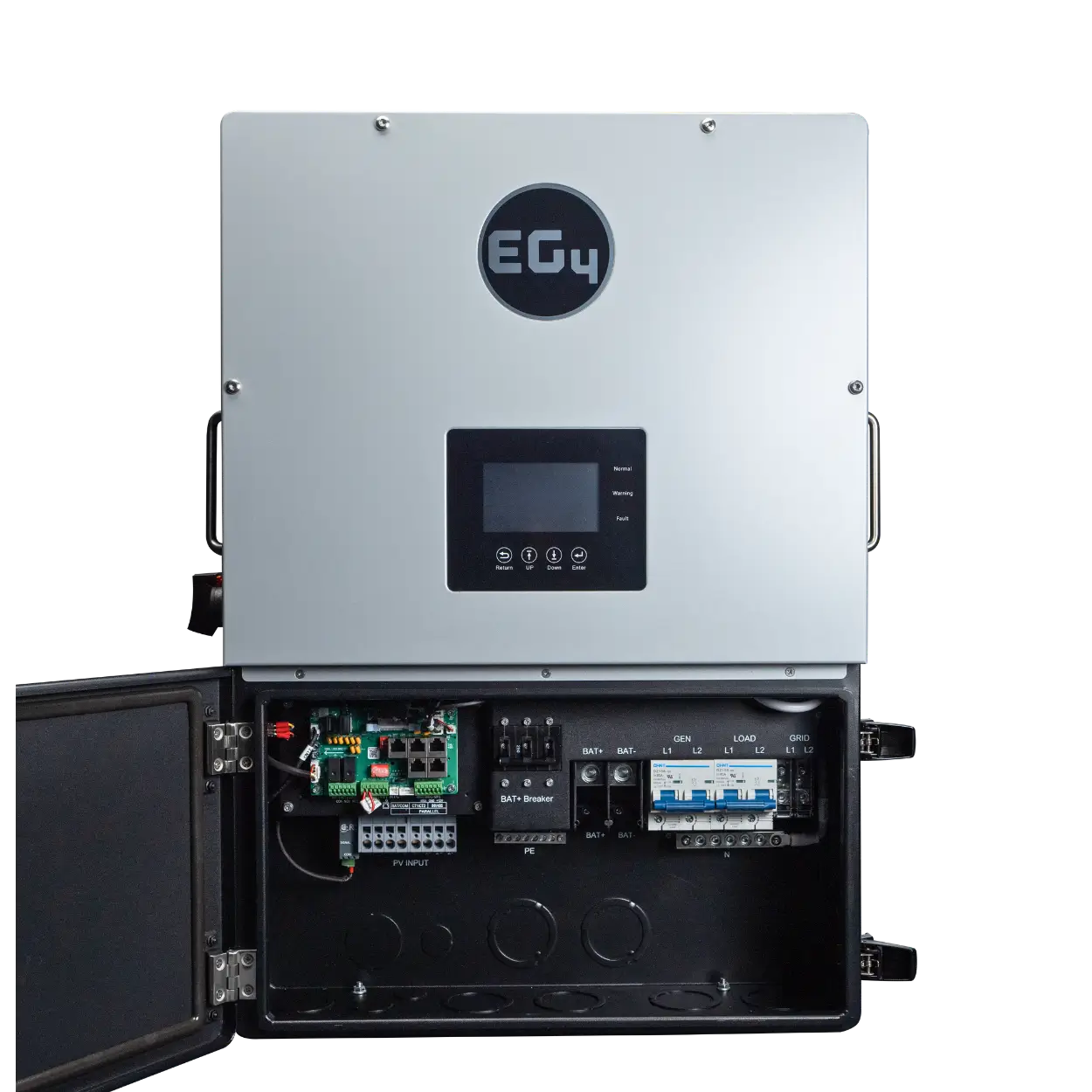

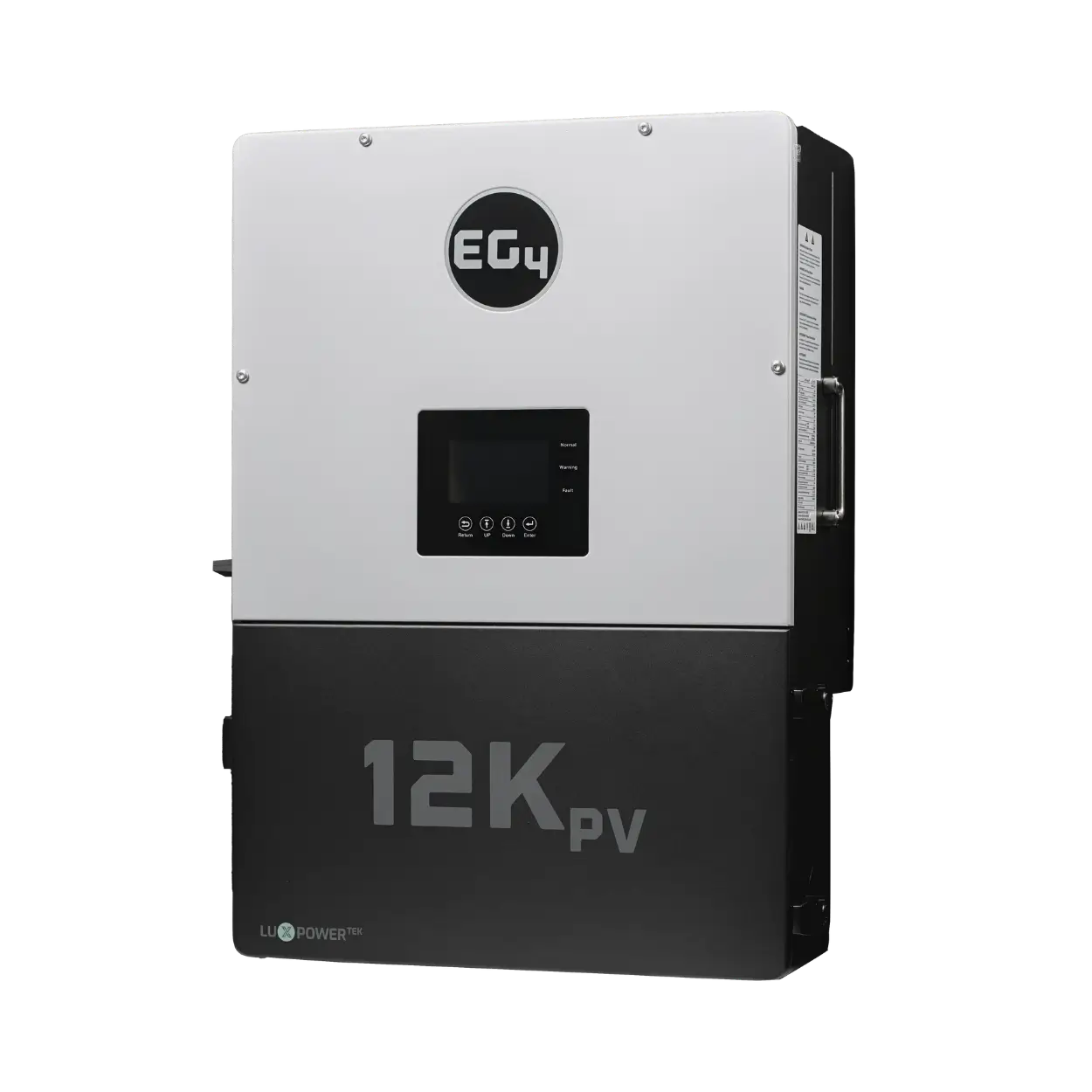

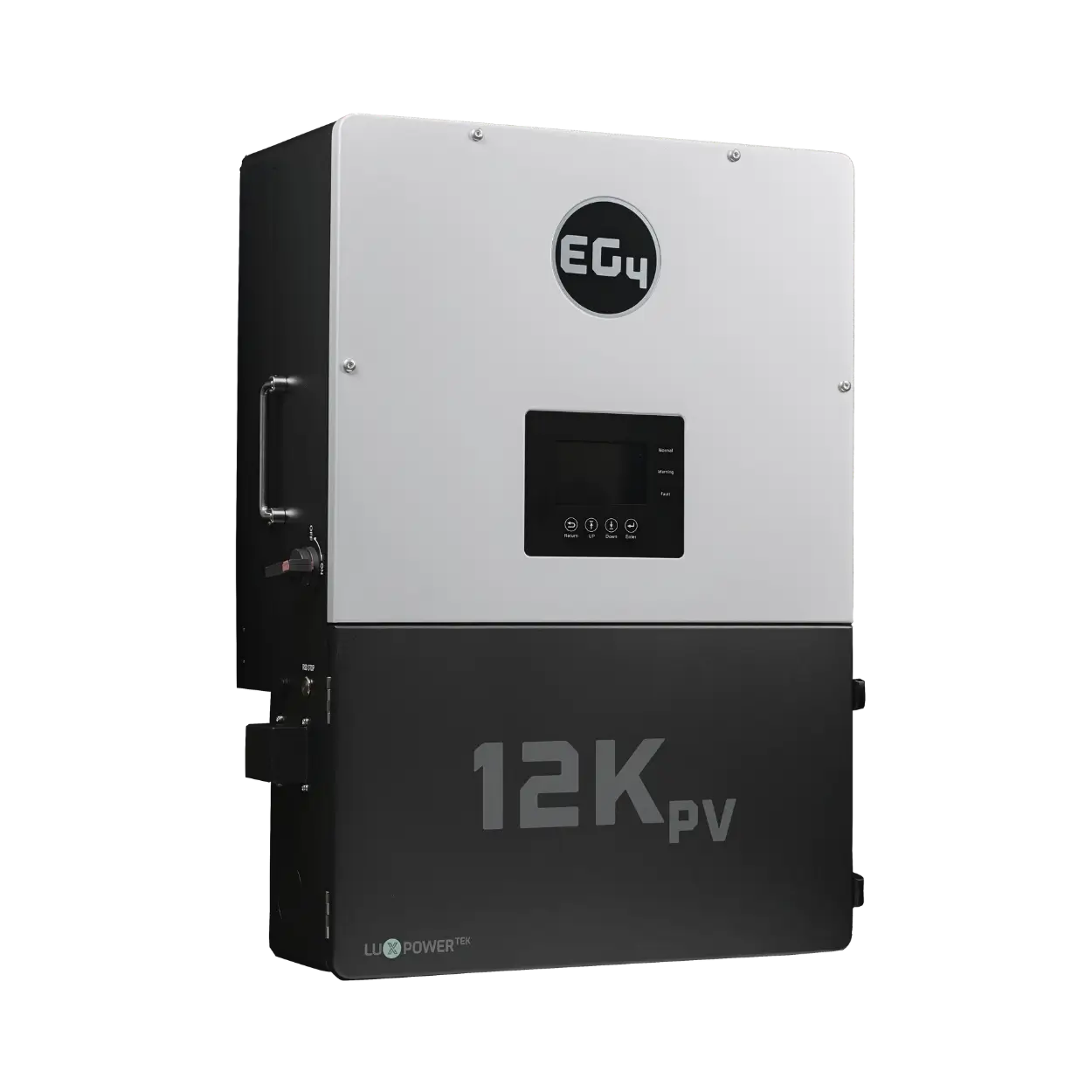

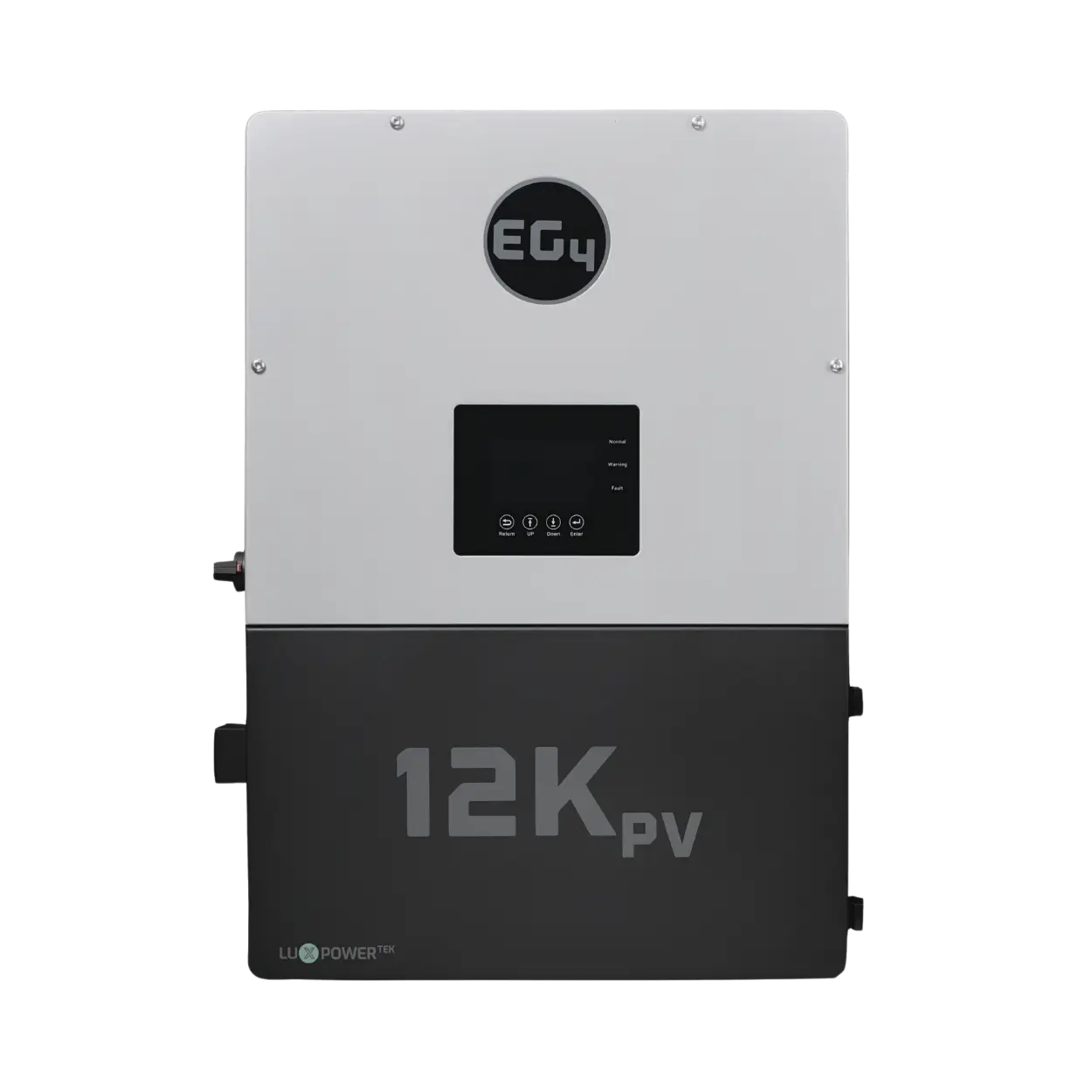

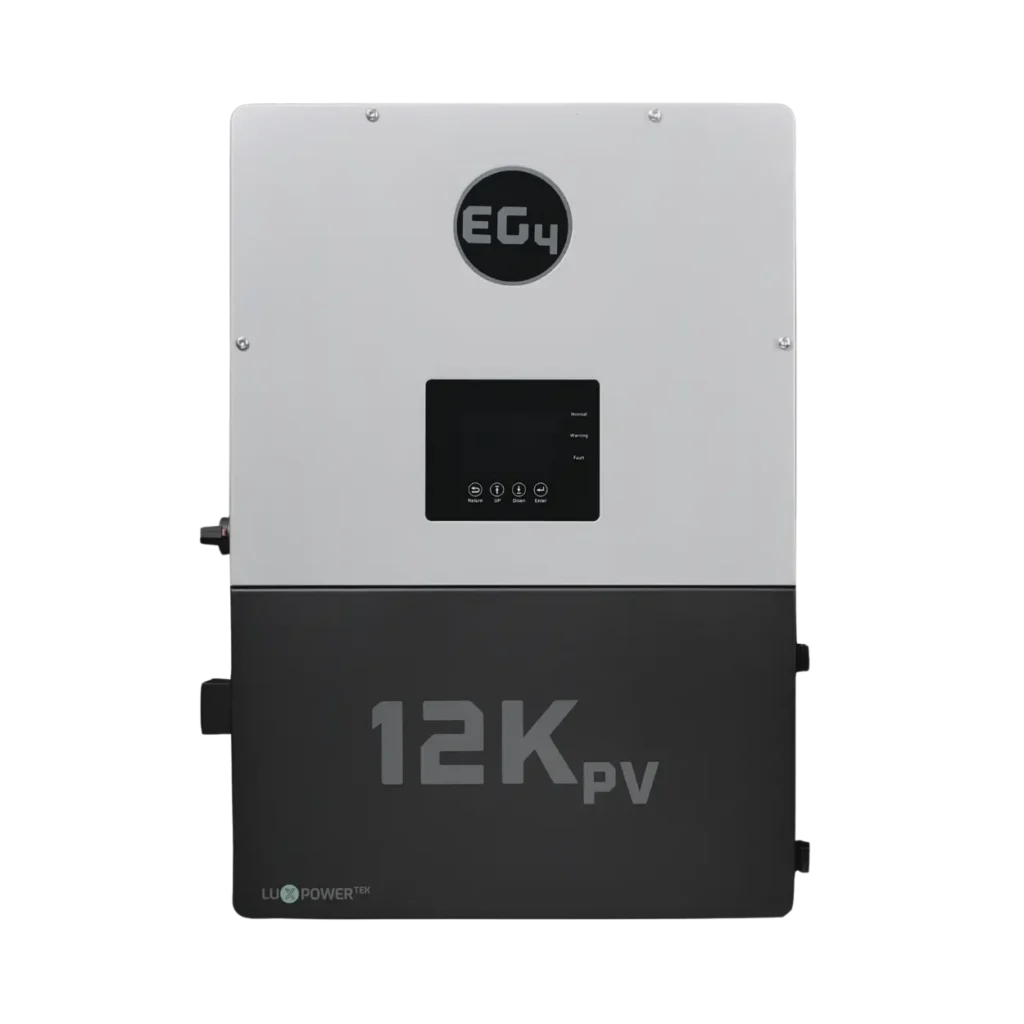

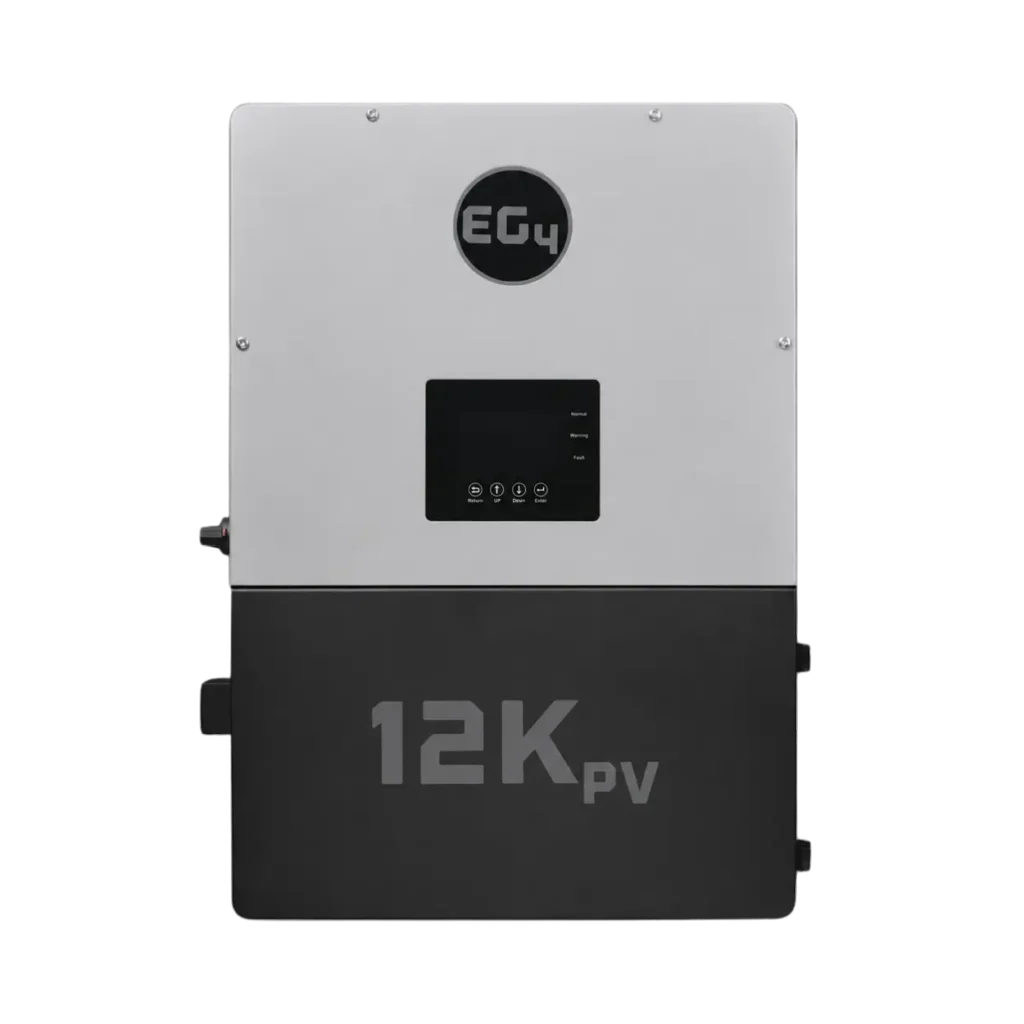

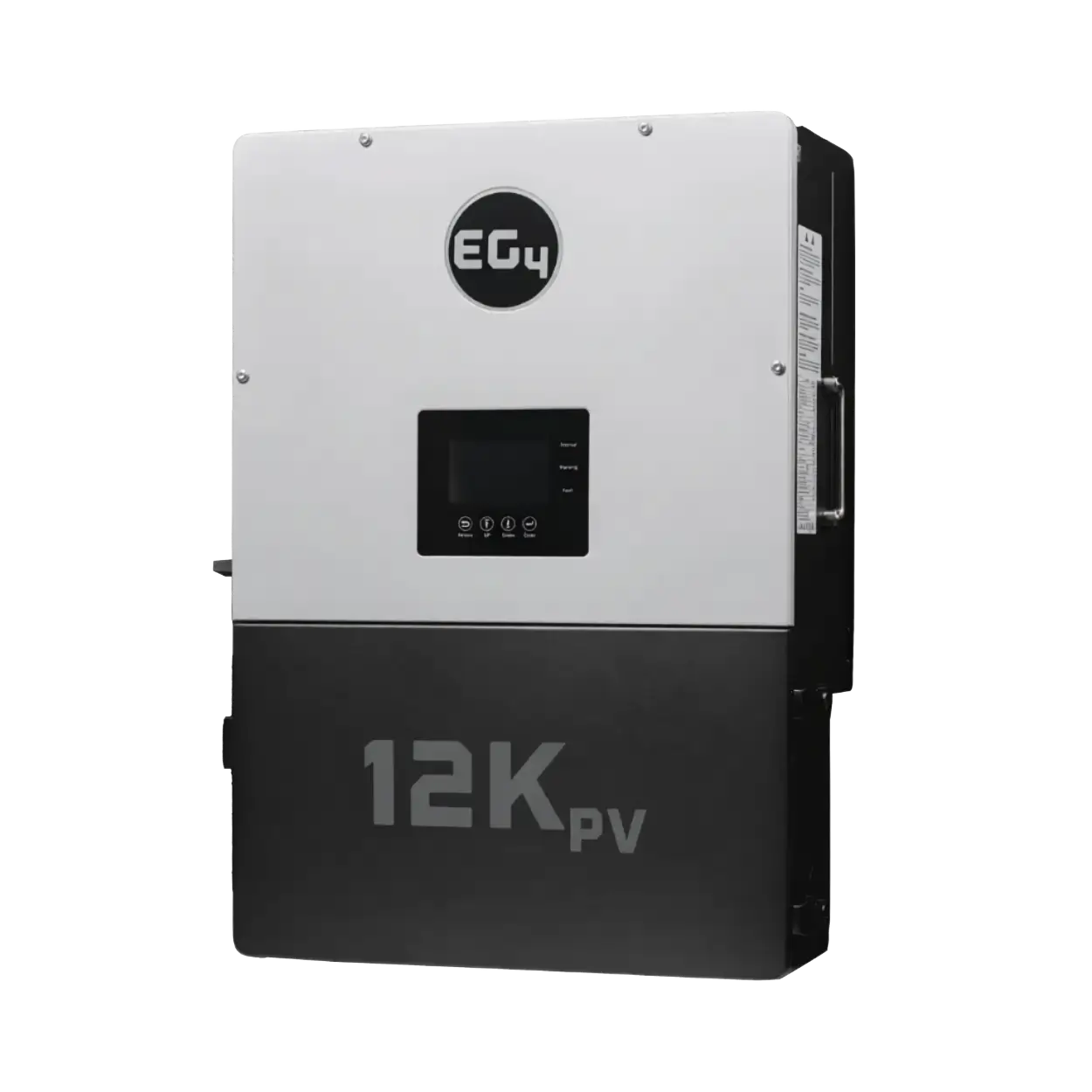

EG4® 12kPV All-In-One Hybrid Inverter
SKU: EG4INV12KPV00V2
UL 1741 SB | CEC
Easily integrate solar power into your current energy system or start a new one with the EG4 12kPV, our newest 48V split-phase hybrid inverter/charger. It uses 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries, producing enough power to easily start a 5 ton air conditioner. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW.
The EG4 12kPV shares the same design, and software as the EG4 18kPV hybrid inverter. However, the 12kPV is more compact and affordable. Its modular design allows for easy expansion, and users can monitor and update the system remotely using the EG4 monitoring website/app for added control and flexibility.
Number of MPPTs: 2 (25A each)
PV Input Voltage Range: 120-500 VDC
PV Input: 12kW PV, accepts maximum 15kW array
AC Output: 8kW continuous
Peak Power: .05s = 16kW, 1s = 12kW, 1min = 10kW, 12min = 8.8kW
Transfer Time: 10ms
Parallel: up to 10 units for 80kW
Outdoor Rated: IP65
Dimensions: 29.5×20.5×11.2 in (750×520×285mm)
Weight: 110 lbs. (50kg)
“Share Battery” Setting: Simplifies installation, saving time and money when paralleling multiple inverters.
Design: Split phase hybrid
Load Imbalance Handling: Can manage up to 4,000W imbalance for 30 minutes.
Generator Compatibility: Integrated generator input for added system reliability.
RSD/ESS Shutdown: Ensures safety with rapid shutdown capabilities.
Monitoring and Updates: Use the EG4 monitoring app/website to monitor system, perform system updates, as well as monitor EG4 battery performance (select battery series with firmware update).
Modular Design: Allows for easy expansion and scalability as power needs grow.
EG4 Warranty: 10 Years
