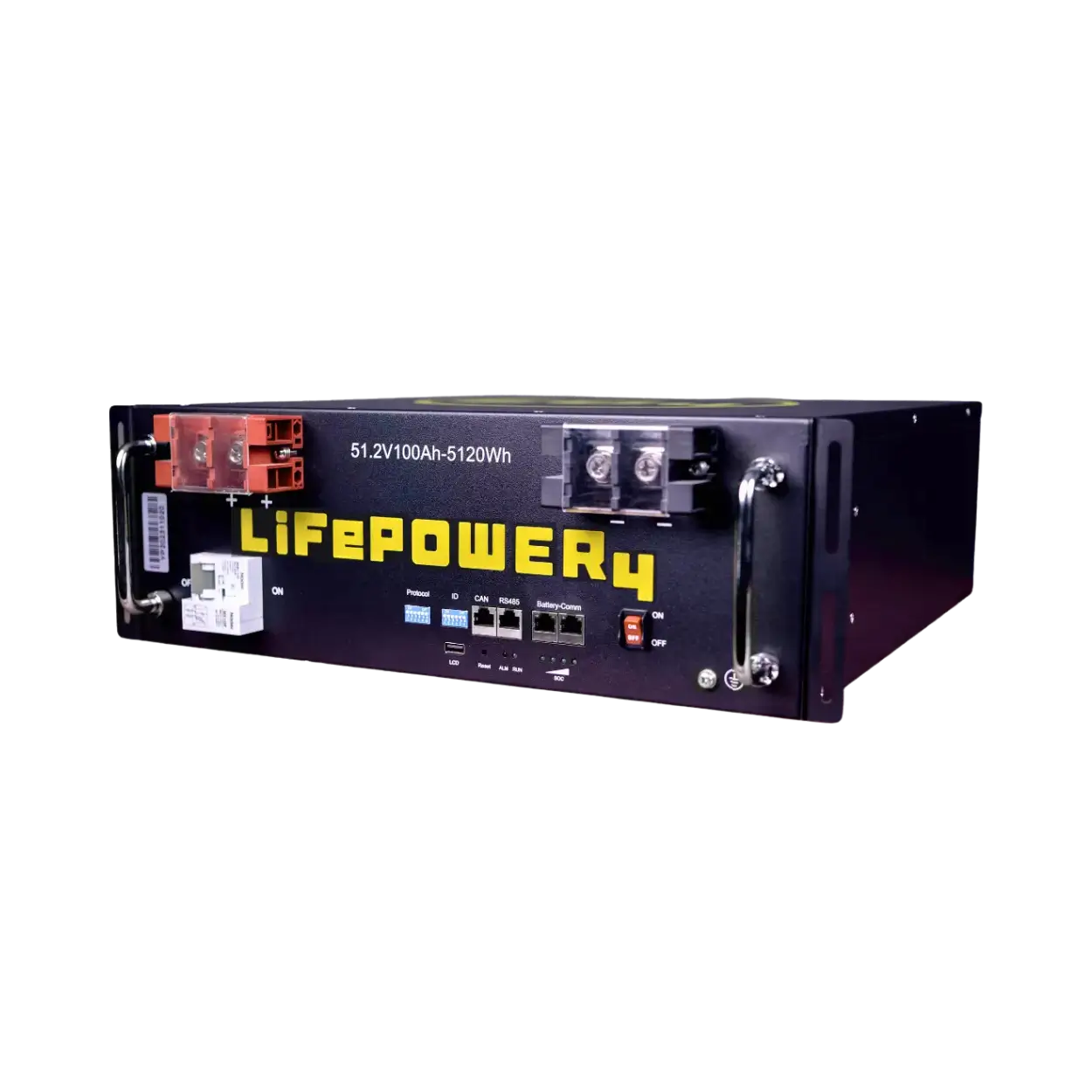

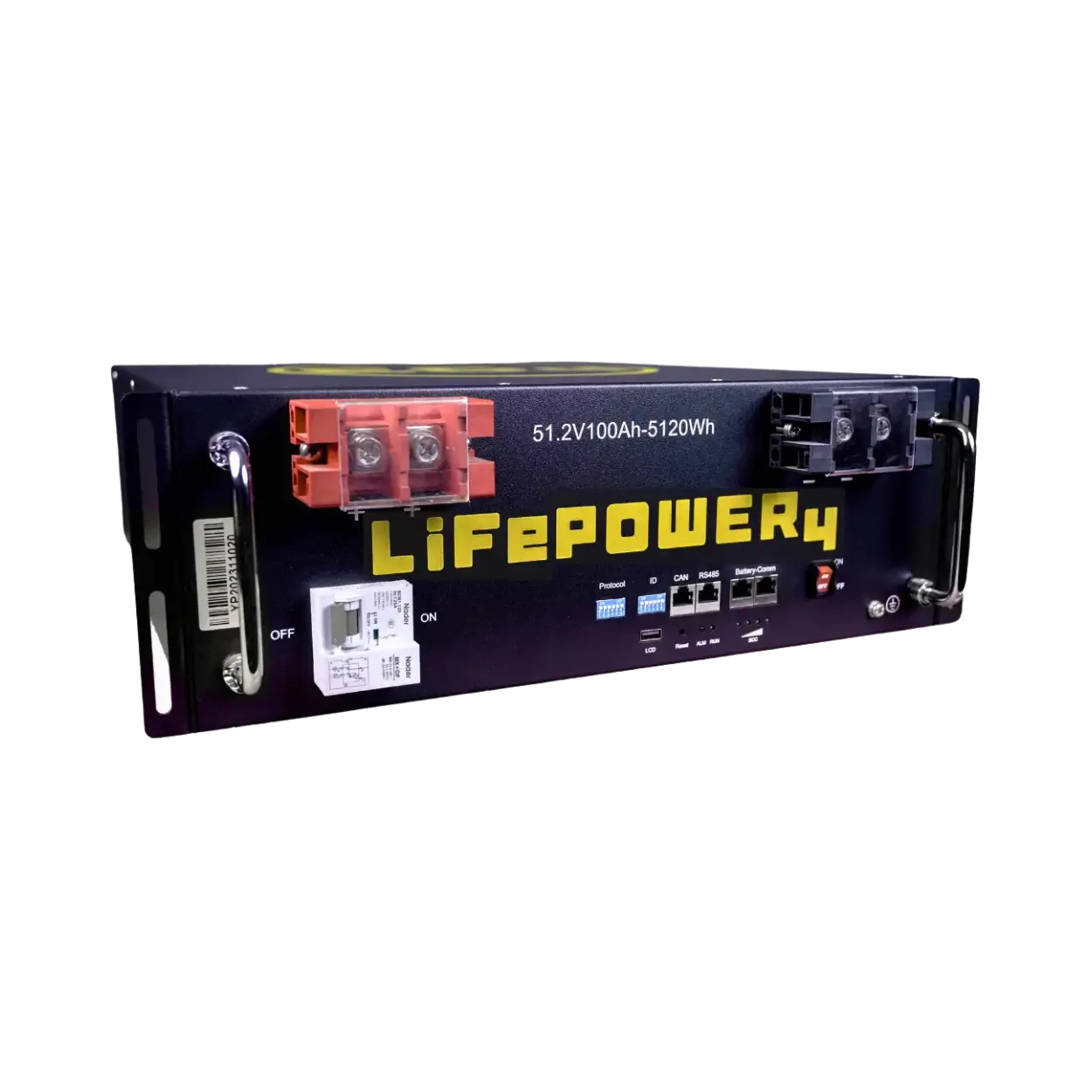

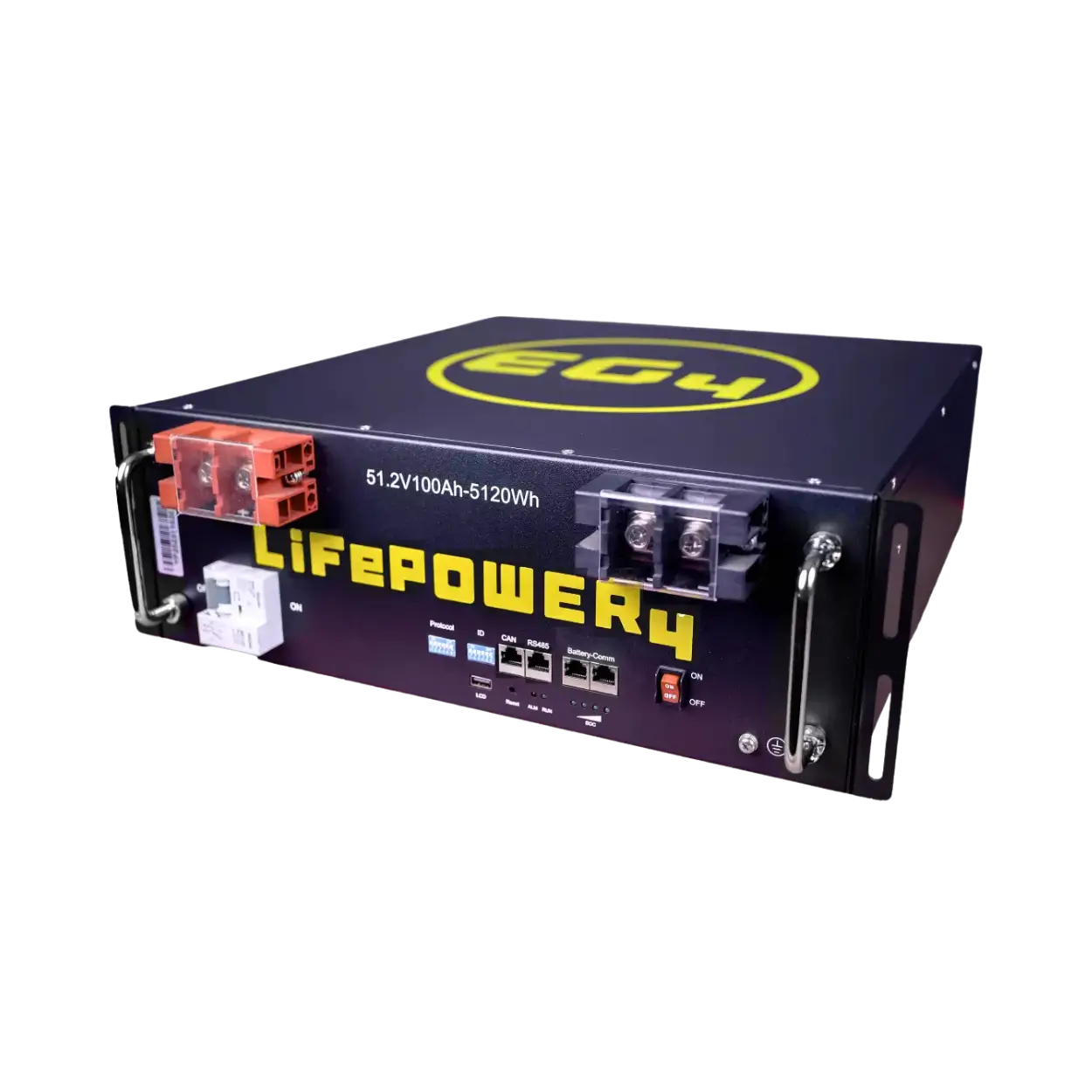

EG4®LiFePower4 48V v2
100Ah Lithium Iron
Phosphate Battery
SKU: EG4LP48V100AV2
MODEL #: SR-48-100-LP4-IN-02
UL 1973 Recognized Component
EG4’s LiFePOWER4 48V v2 battery keeps the sturdy design and high performance of the original model but adds new features for better user experience and system integration. This Lithium Iron Phosphate (LiFePO4) battery has 16 UL recognized prismatic 3.2V cells in series, offering >6,000 deep discharge cycles at 80% Depth of Discharge (DoD). It has a nominal voltage of 51.2V, an energy capacity of 5.12kWh, and an internal 100A Battery Management System (BMS).
The battery supports parallel connection of up to 64 units and comes with a 10-year limited warranty. Improved terminal connections make it easier to attach chargers or EMP shields. The LiFePOWER4 48V v2 includes RS485 and CAN bus communication for broader inverter compatibility, with a new Protocol 6 DIP switch, offering straightforward and convenient inverter and battery customization. Additionally, E-Stop (Emergency Stop) rapid shut down (RSD) functionality ensures fail-safe operation in high-risk environments and dual on-board fire arrestors provide added peace of mind during operation.
Nominal Voltage: 51.2V
Energy Capacity: 5.12kWh
Charge Capacity: 100Ah
BMS: Internal 100A Battery Management System
Design Life: Tested for >6,000 deep discharge cycles at 80% Depth of Discharge (DoD)
Dimensions: 6.1 in × 19 in × 17.4 in (155 mm × 442 mm × 470 mm)
Weight: 99.6 lbs. (45.2 kg)
- Retains robust architecture and high performance of predecessor
- Composed of 16 UL recognized prismatic 3.2V cells in series
- New 10-year warranty
- Equipped with BMS communication on/off switch
- New Protocol 6 DIP switch provides convenient inverter and battery customization
- Supports closed-loop communication of up to 64 batteries in parallel, for a max storage capacity of 327.7kWh
- Enhanced terminal connections with two positive and two negative terminals
- CAN bus and RS485 ports allow for communication with a wider range of inverters
- E-Stop (Emergency Stop) rapid shut down (RSD) functionality ensures fail-safe operation in high-risk environments
- Dual on-board fire arrestors provide added peace of mind during operation
- UL 1973 Recognized Component, UL 9540A (passed), UL 9540 Listed with 18kPV-12LV
