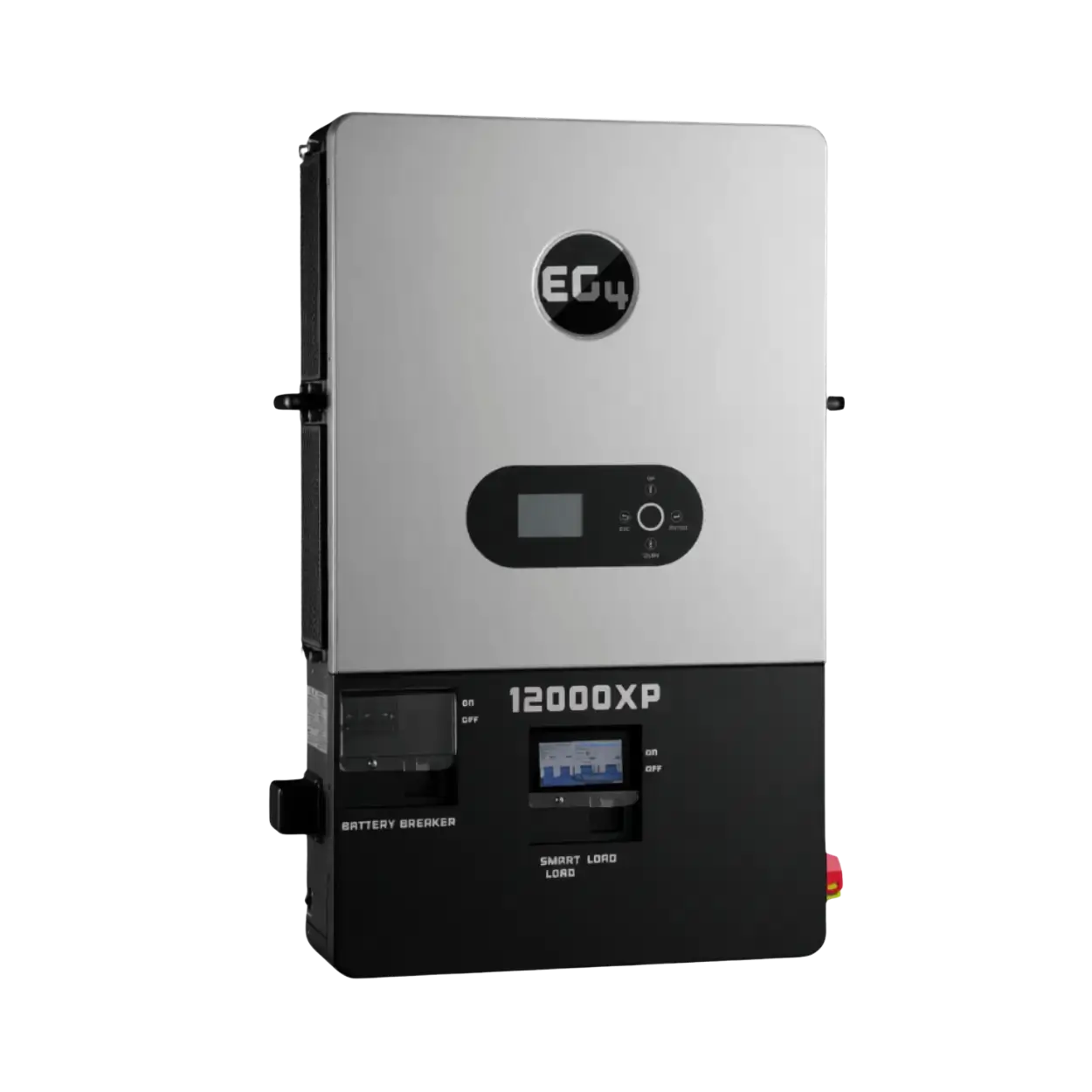

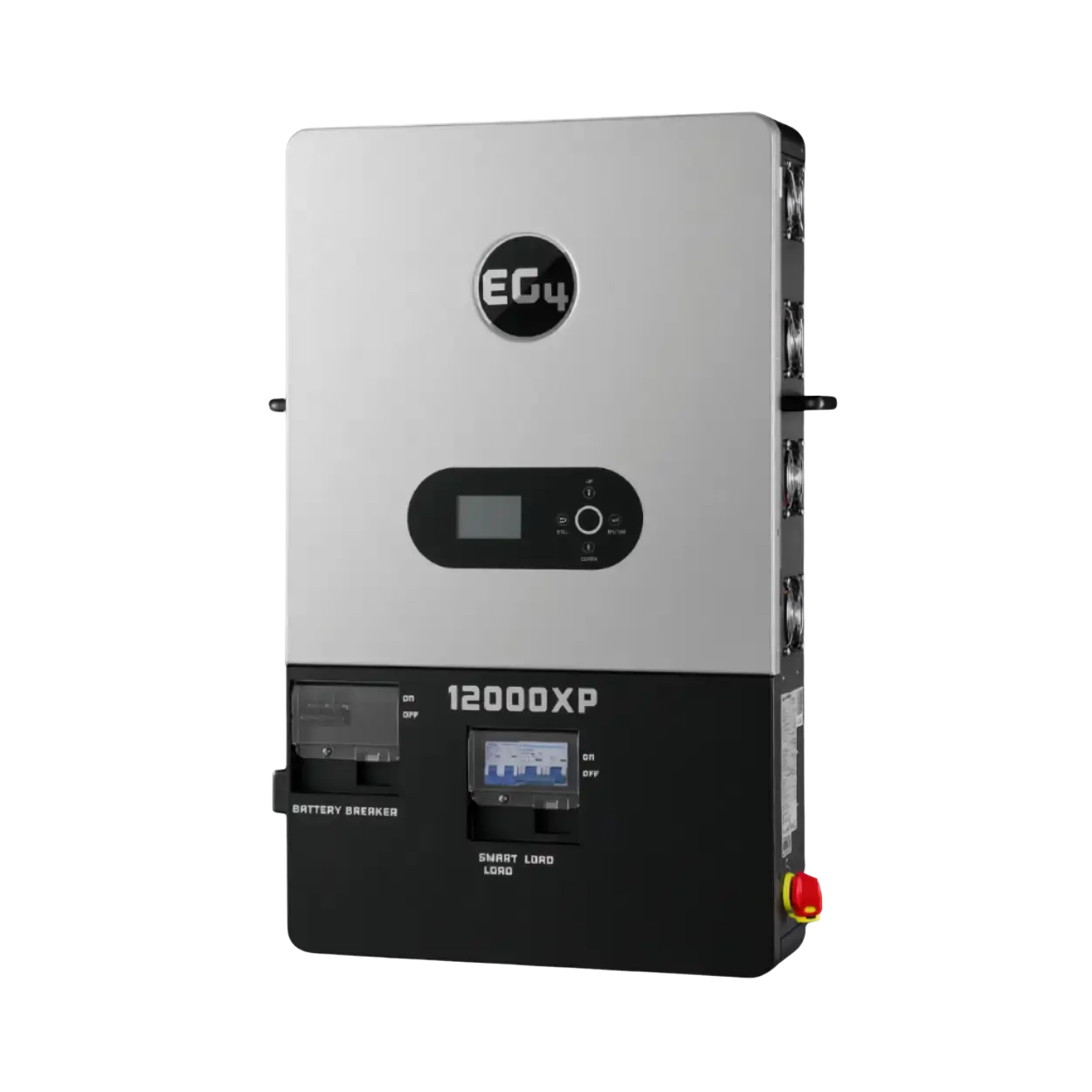

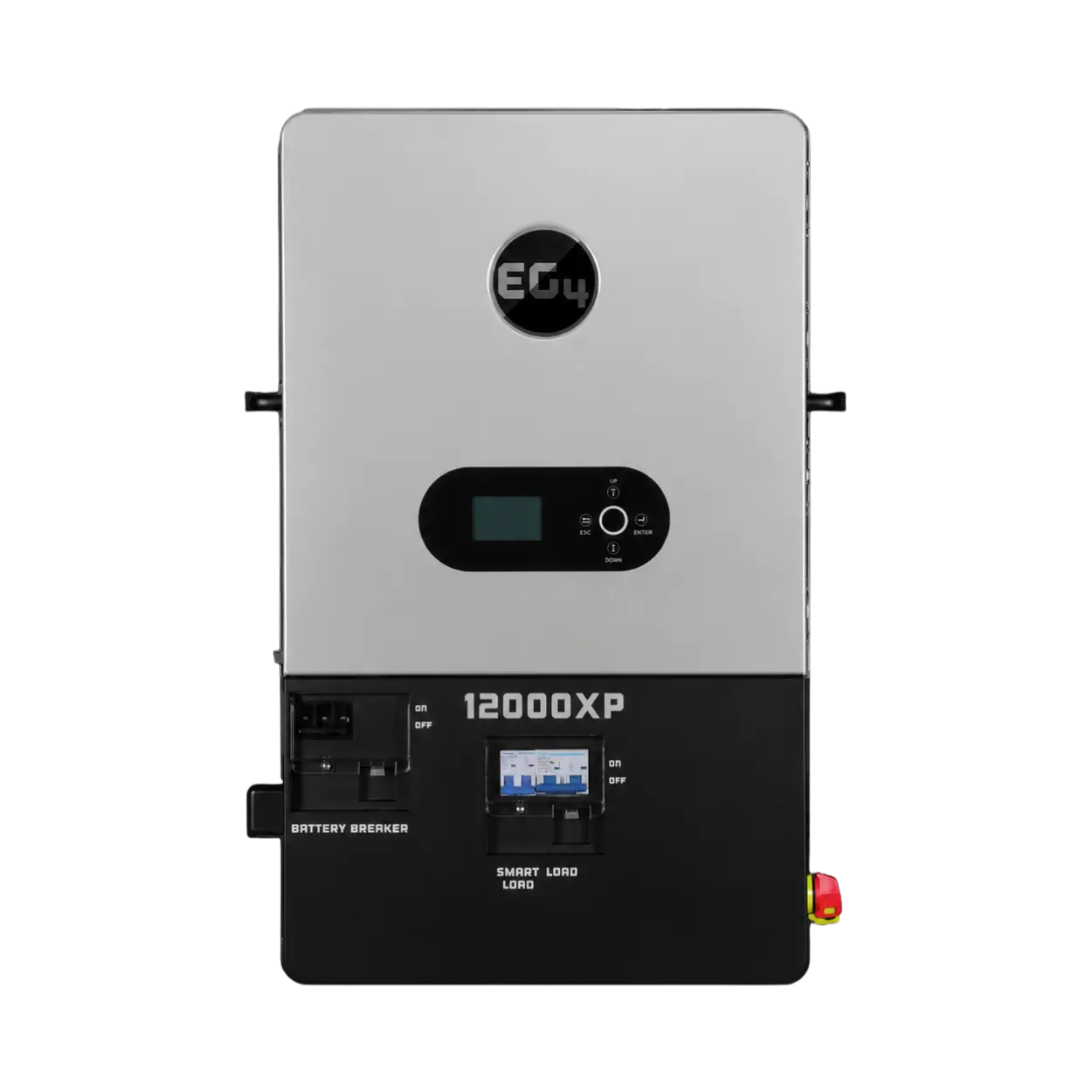

EG4^® 12000XP

All-In-One Off-Grid Inverter

MODEL #: IV-12000-XP-IN-*

SKU: EG412000XPV1

The EG4 12000XP is a 12kW AC, split-phase, all-in-one off-grid inverter with grid charge capability, designed for residential and small commercial use. It supports 24kW of DC solar PV through two 35 Amp MPPTs, generating 12kW of power @120/240 VAC while allowing 24kW (100 Amps) of utility or 90 Amps from a generator. The 24kW max DC solar input allows for up to 12kW of DC power to rapidly charge batteries even when supporting AC loads up to 12kW. With a 100 Amp bypass for seamless power transitions, the 12000XP ensures reliable operation off-grid or during outages.

Equipped with a generator port, the 12000XP features 2-wire start/stop auto-start and a programmable Smart Port for smart load control or AC coupling. It can be paralleled with up to 16 units for 192 kWs. It’s a cost-effective solution for those not requiring grid sellback and with EG4 batteries, provides true whole-home backup.

FEATURES & BENEFITS

High Capacity:
Boasts one of the largest usable PV inputs on the market

Balanced Power Distribution:
Provides 24kW PV input, with 12kW max power output to each of loads and batteries

Robust Start Capability:
Can start a 5-ton AC without a soft start

Programmable Port Flexibility:

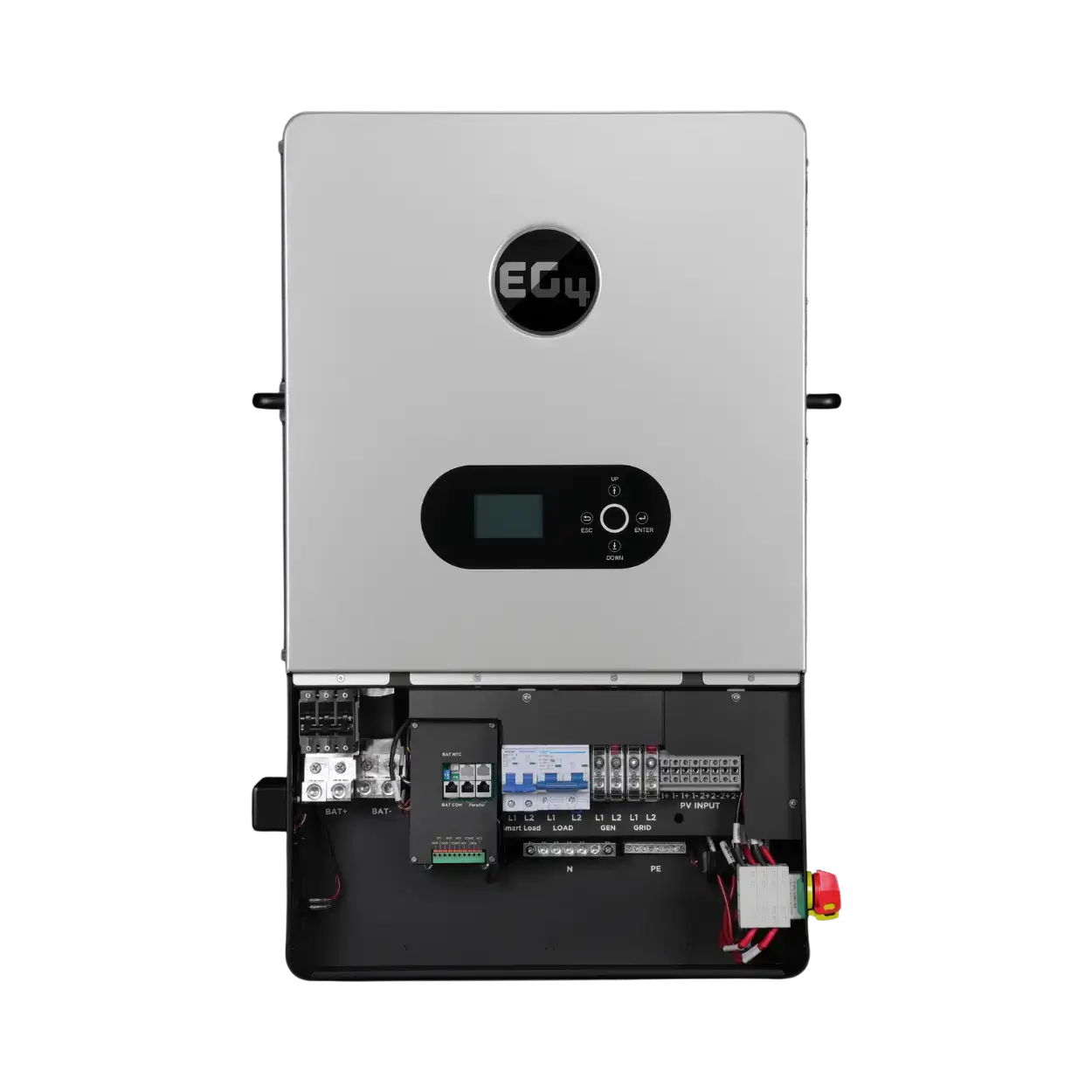

Separate ports for generator, AC coupling, and smart loads

KEY SPECIFICATIONS

Max output: 12kW to each of Loads and Batteries
Number of MPPTs: 35A/35A, gives flexibility of 2 strings per input
Max generator input: 63A
Max grid passthrough: 100A (AC Grid output 50A @ 240VAC)
Dimensions: 34.3×20.9×5.9 in.
Weight: 104.7 lbs.
Warranty: 5-years
