EG4® WallMount Indoor 280Ah Lithium Battery
SKU: EG4LP48V280AHIDWMB
UL 1973 | UL 9540A | UL 9540 with 18kPV
Whether you’re aiming to reduce costs or achieve grid independence, the EG4 WallMount Indoor Battery is a great choice. This battery provides 14.3 kWh of storage capacity for indoor applications and a maximum continuous output of 200A. The battery’s integrated self-heating feature makes it an excellent option for unheated indoor environments and its LCD screen allows you to easily monitor and control the battery.
With features like a built-in 200A BMS, integrated 600A busbars, E-Stop (Emergency Stop) rapid shut down (RSD) functionality, and dual fire arrestors, the EG4 WallMount Indoor Battery ensures that your system will be safe. Backed by a 10-year warranty and designed for over 8000 cycles at 80% DoD, this battery is an excellent solution for your solar energy needs.
Voltage: 51.2V
Capacity: 280Ah
Dimensions: 36.4 in.×18.1 in.×9.6 in. (92.5 cm×46 cm×24.5 cm)
Weight: 282 lbs. (128 kg)
Design Life: 8000 Deep Cycles
Certifications: UL 1973, UL 9540A
California Proposition 65 Warning
Lifetime Production: 82.6MWh
Built-in 200A BMS
82.6MWh lifetime production
10 Year Warranty:
Over 8000 cycles at 80% DOD
Comprehensive Certifications:
UL 1973 | UL 9540A | UL 9540 with 18kPV

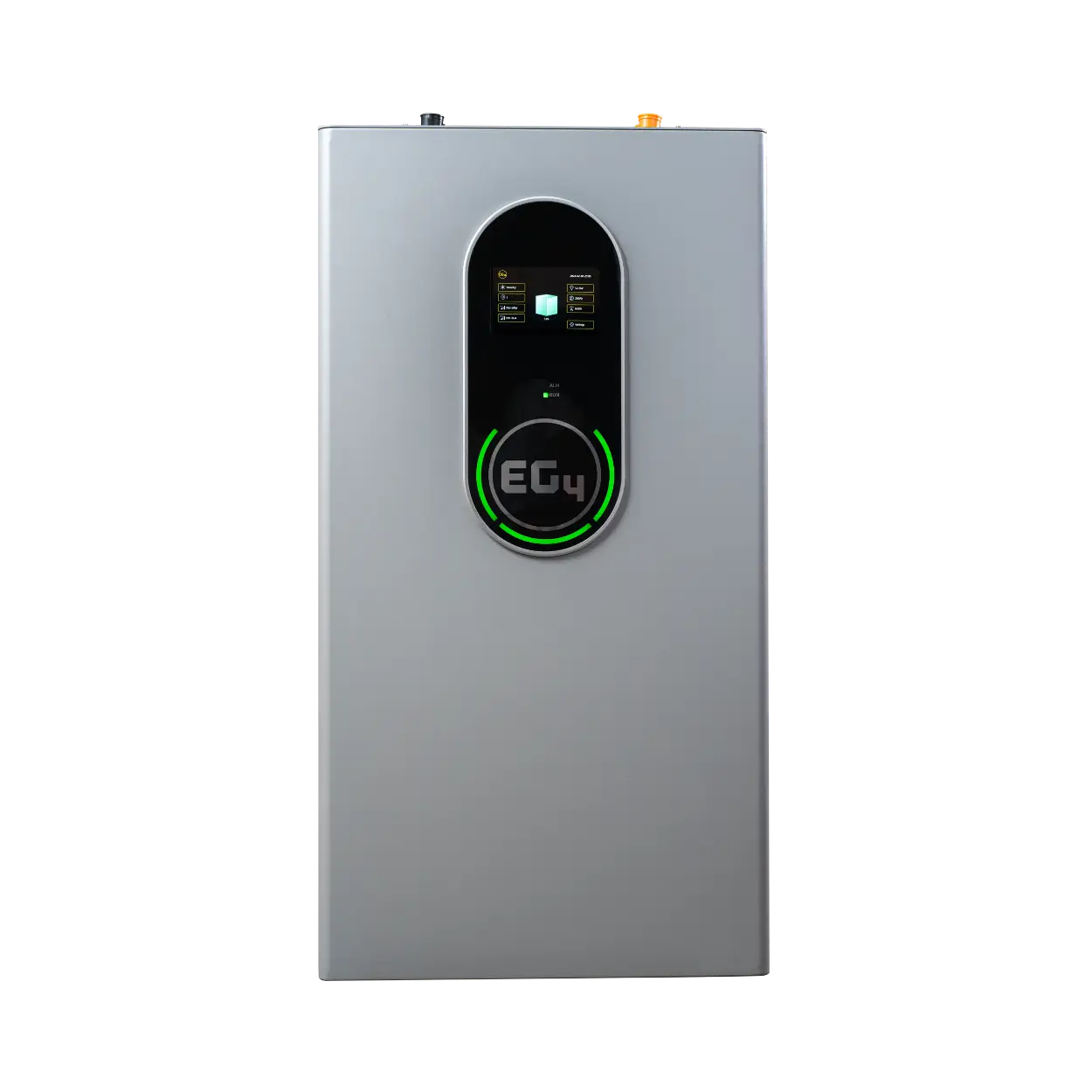

On-Board LCD Touch Screen:
Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Dual On-Board Fire Arrestors:
Offer fail-safe protection against thermal runaway.
Integrated Self-Heating Feature:
Internal heating keeps the cells operational during colder temperatures.
Integrated Busbars:

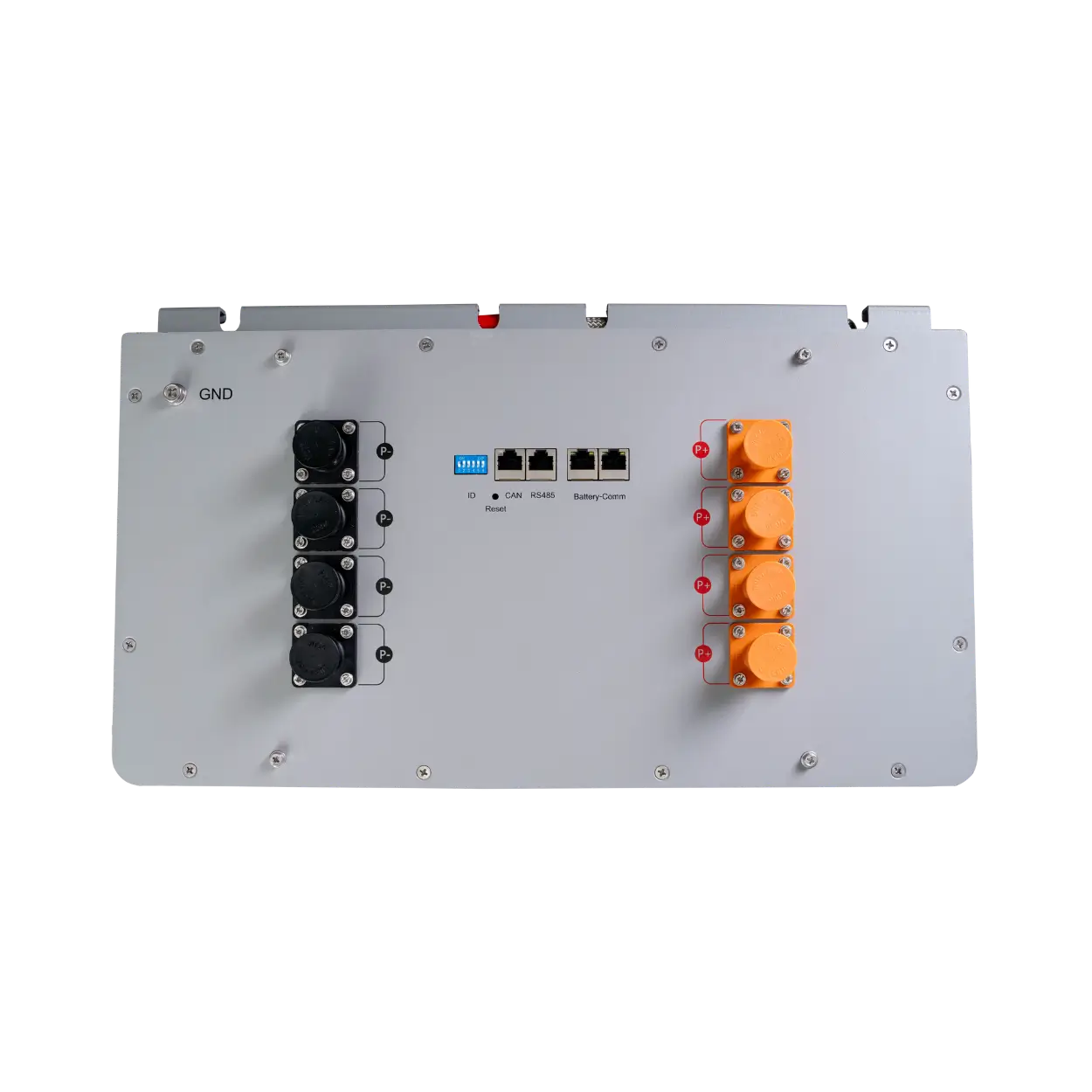

The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive and 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.
Innovative Emergency Stop Function:
The optional RSD/ESS disconnect can shut down all batteries and inverters (if equipped with rapid shutdown capability) with the press of a button.
The Perfect Partner to EG4 Inverters:
The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, conduit box plugs should be installed.
