EG4 Electronics

EG4® BrightMount® Adjustable Cat1

Solar Panel Ground Mount Rack

SKU: EG4BM25DEGKITV2

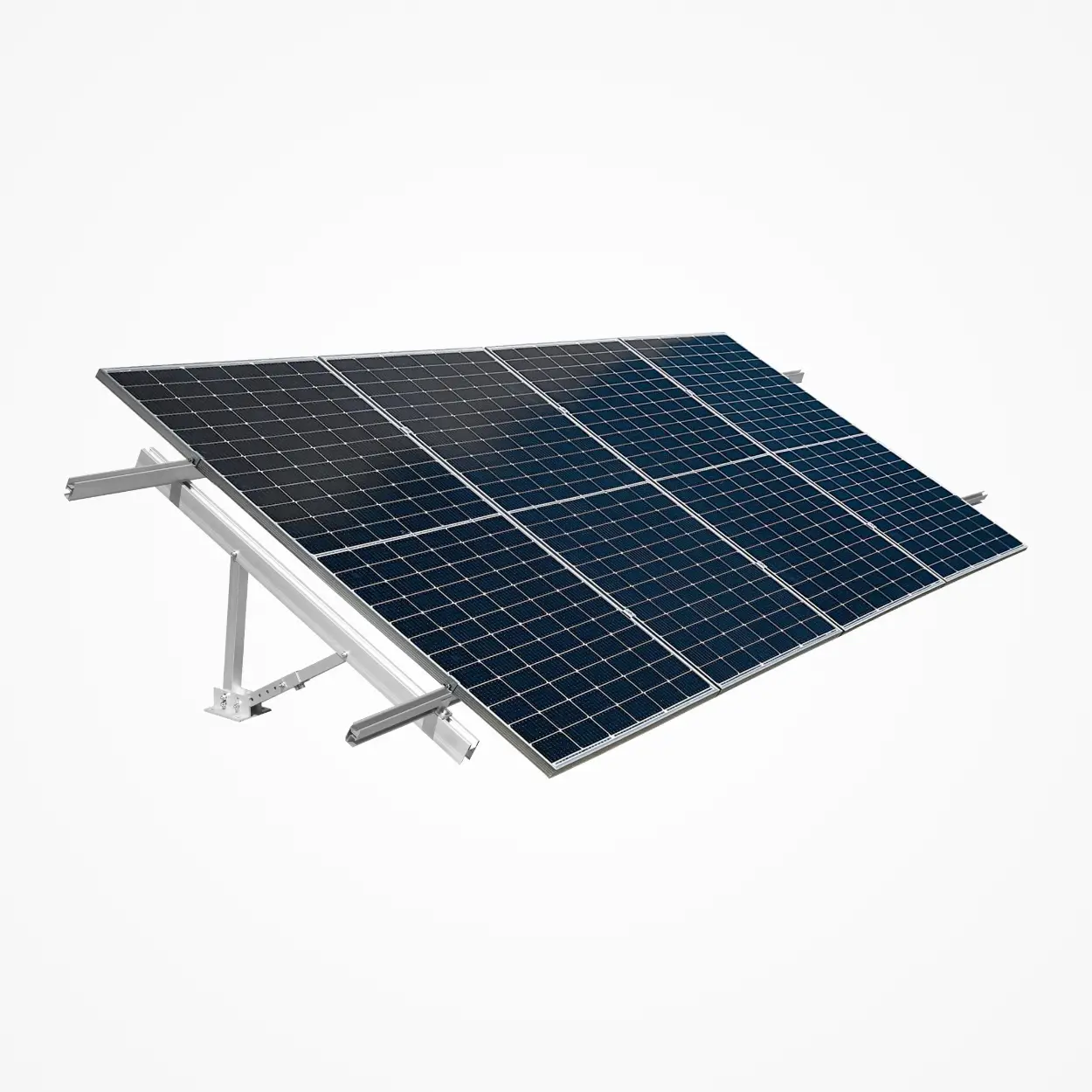

The EG4® BrightMount® Adjustable Cat1 Solar Panel Ground Mount Rack is a durable and versatile solution that simplifies the installation of ground-mounted solar panel arrays. Built from high-quality anodized aluminum alloy and stainless-steel hardware, this robust ground mount is engineered to withstand extreme outdoor conditions, including winds up to 90 mph.

Each EG4 BrightMount kit includes everything needed to install up to four 43.3 in. (1100mm) solar panels side-by-side, making it a cost-effective choice. For wider panels, an optional extension kit accommodates up to four 44.65 in. (1134mm) panels. Its adjustable inclination angles allows for fine-tuning based on your location, maximizing solar absorption. Designed for ease of use, the EG4 BrightMount’s simple setup can be completed by one person with minimal tools.

Durability in Harsh Conditions:
Lightweight, weather-resistant anodized aluminum alloy rated to withstand winds up to 90 mph

Corrosion-Resistant Materials:
Extended lifespan in outdoor settings

Low Profile, Simple Design:
Allows versatile installation in various environments

Quick Assembly with Minimal Tools:
Reduces labor time and effort

Not Directly Compatible with Previous BrightMount Versions:
Similar, but parts are not interchangeable

Adjustable: 20°, 25°, 30°, 35°, or 40° inclination angles
Installation Without Extension: Up to four 43.3 in. (1100mm) solar panels side-by-side
Installation With Extension: Up to four 44.65 in. (1134mm) wider panels
Warranty: 10-year mechanical
