EG4® Mini-Split Line Set Extension Kit
SKU: EG4MSAC12BTUEXT (12k AC/DC)
SKU: EG4MSAC24KBTUEXT (9k/12k AC & 24k AC/DC)

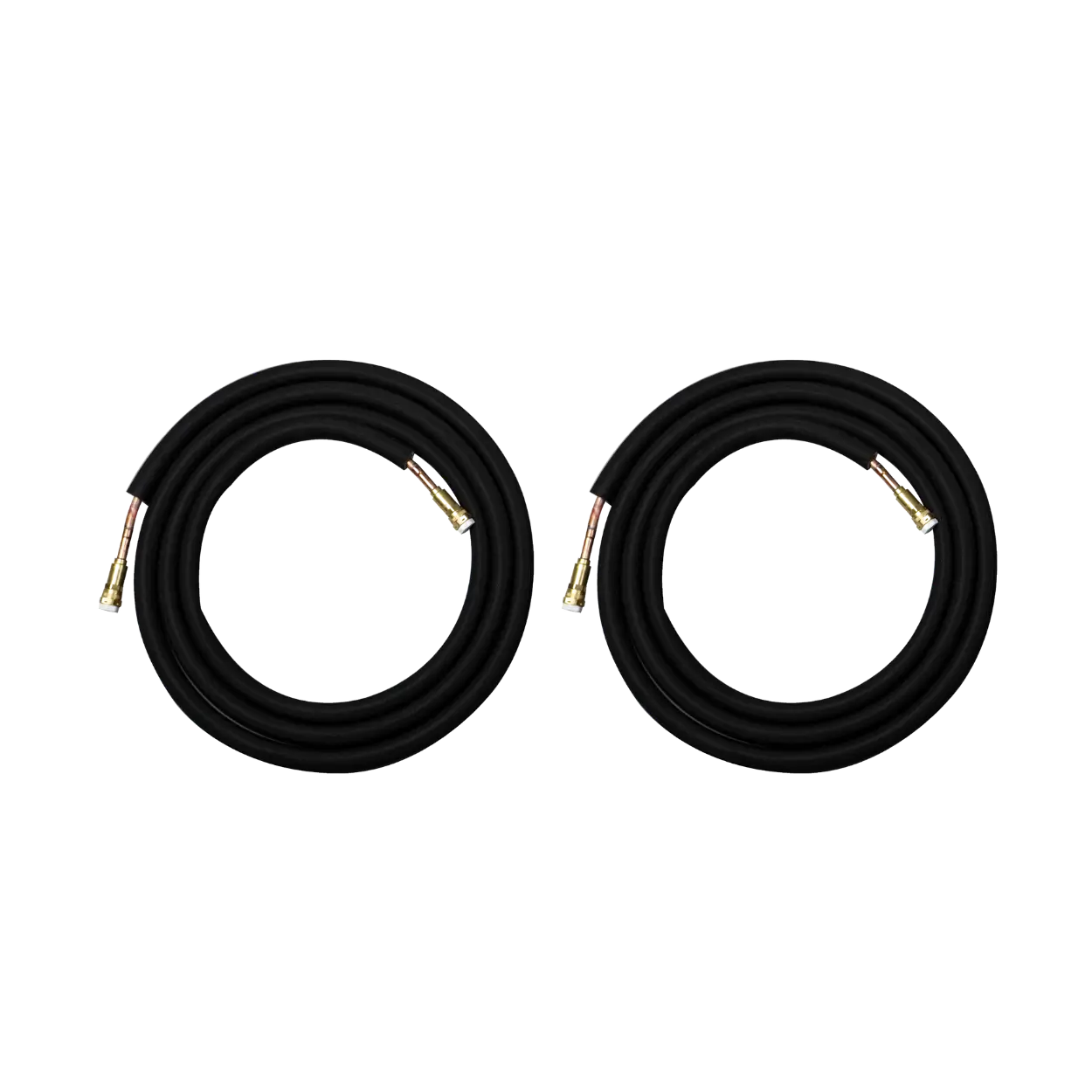

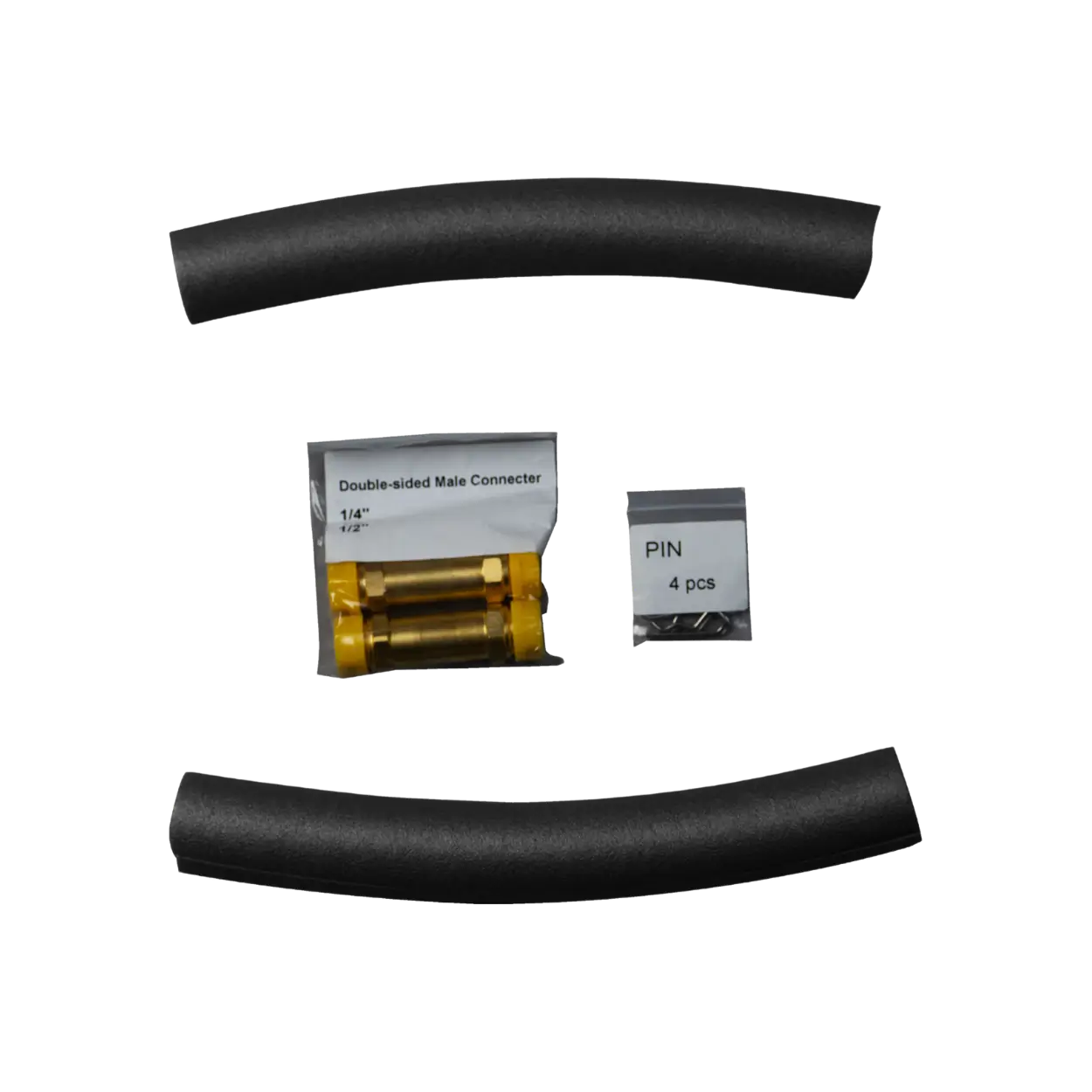

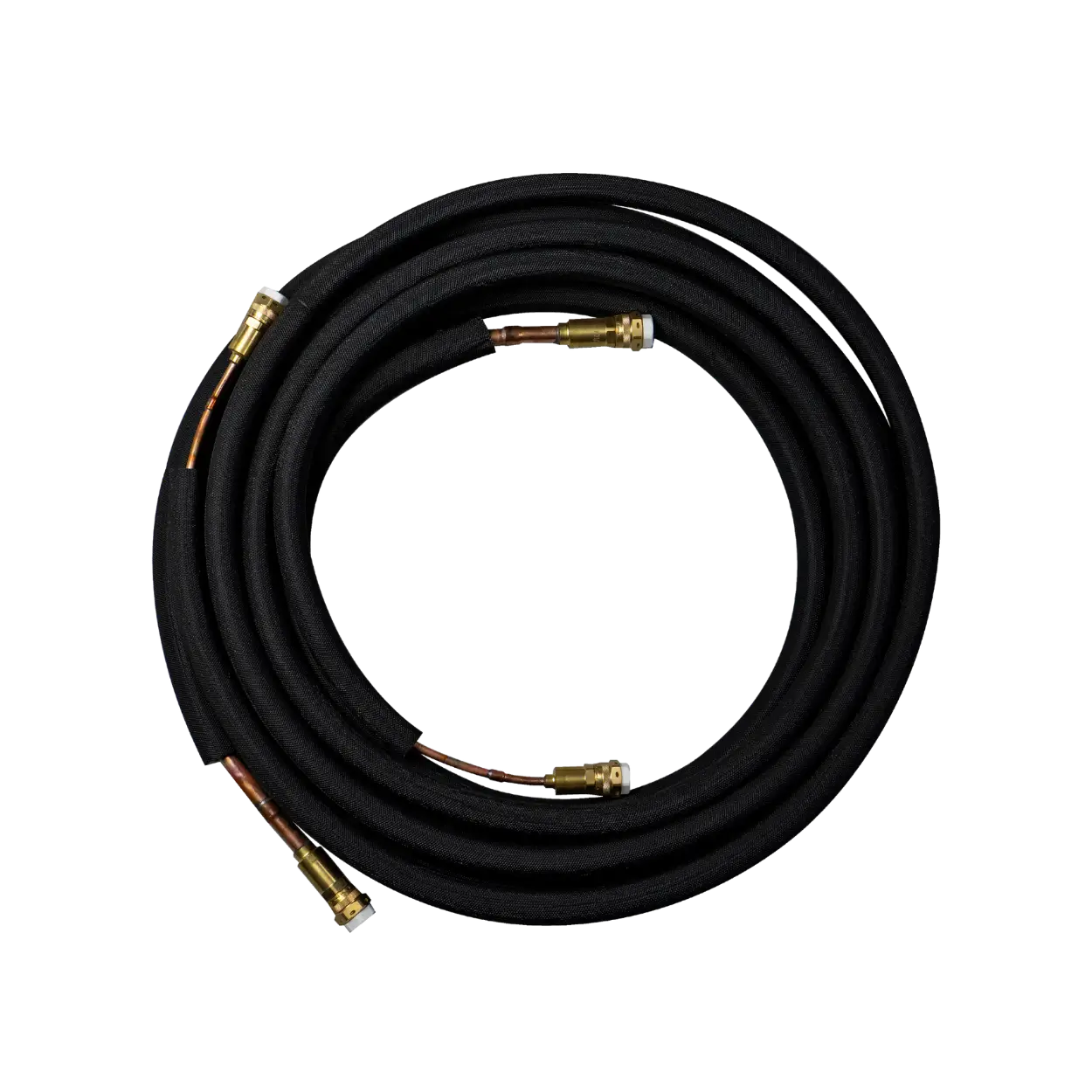

EG4’s Line Set Extension Kit provides an additional 16.4 (5m) of lines for your EG4 mini-split air conditioner. This line set is useful when one needs more distance than the mini-split’s included 16.4 ft. (5m) of lines can provide. The line sets included in this kit and with the EG4 mini-splits are pre-vacuumed and have Plug-N-Cool connectors. The kit also includes a set of connectors to combine the Plug-N-Cool line sets together without requiring the services of an HVAC technician.*
*3 percent loss of efficiency without the addition of refrigerant
*3 percent loss of efficiency without the addition of refrigerant
SPECIFICATIONS
SPECIFICATIONS
Extension: 16.4 ft. (5m)
Liquid Valve Diameter: 0.25 in. (6.35mm)
Gas Valve Diameter (12k AC/DC): 0.375 in. (9.53mm)
Gas Valve Diameter (9k/12k AC & 24k AC/DC): 0.5 in. (12.7mm)
