EG4 Chargeverter Plus
Chargers
EG4 Chargeverter Plus
Chargers
- MODEL #: CU-48-5000-OD-01
- SKU: EG4CV48V100AIP54

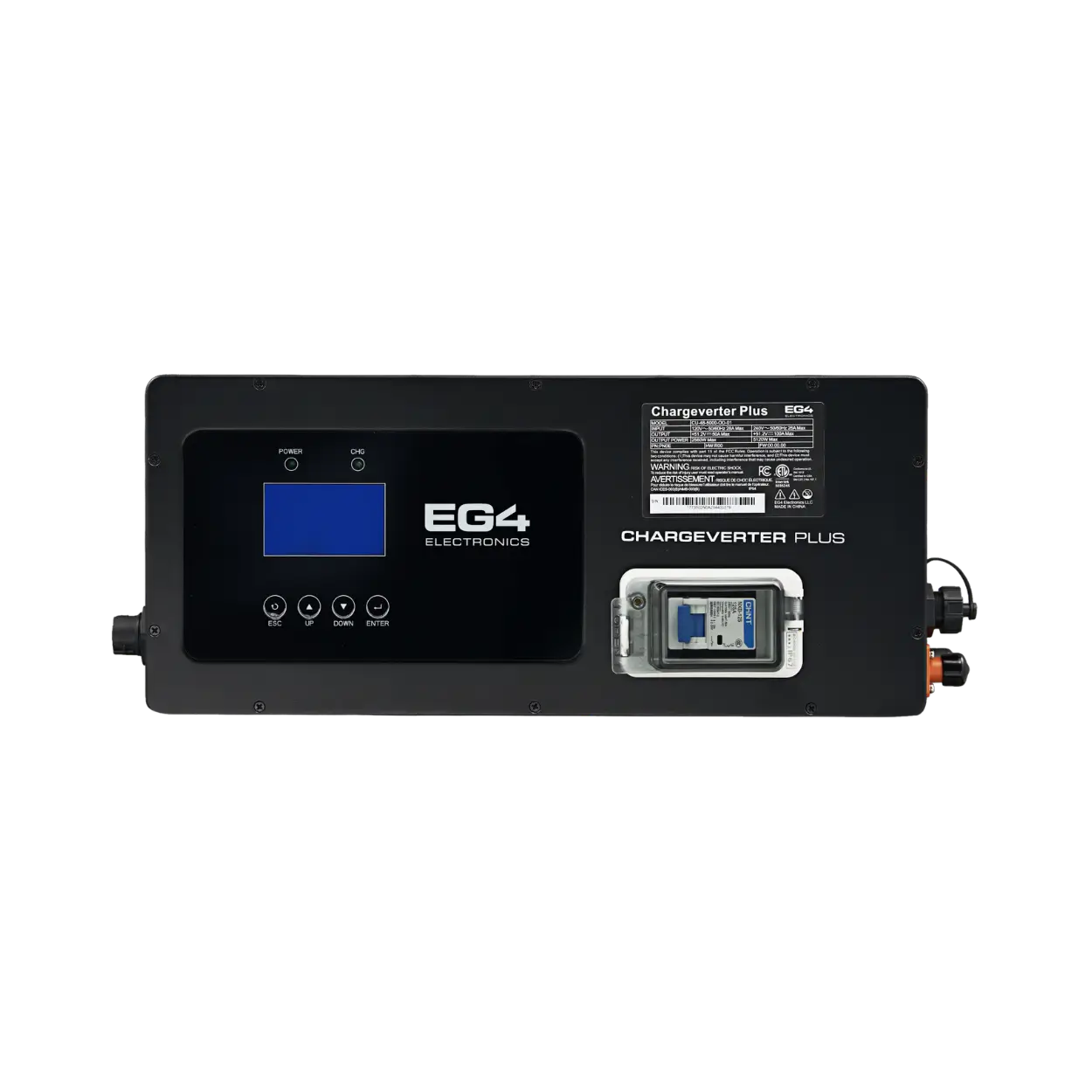

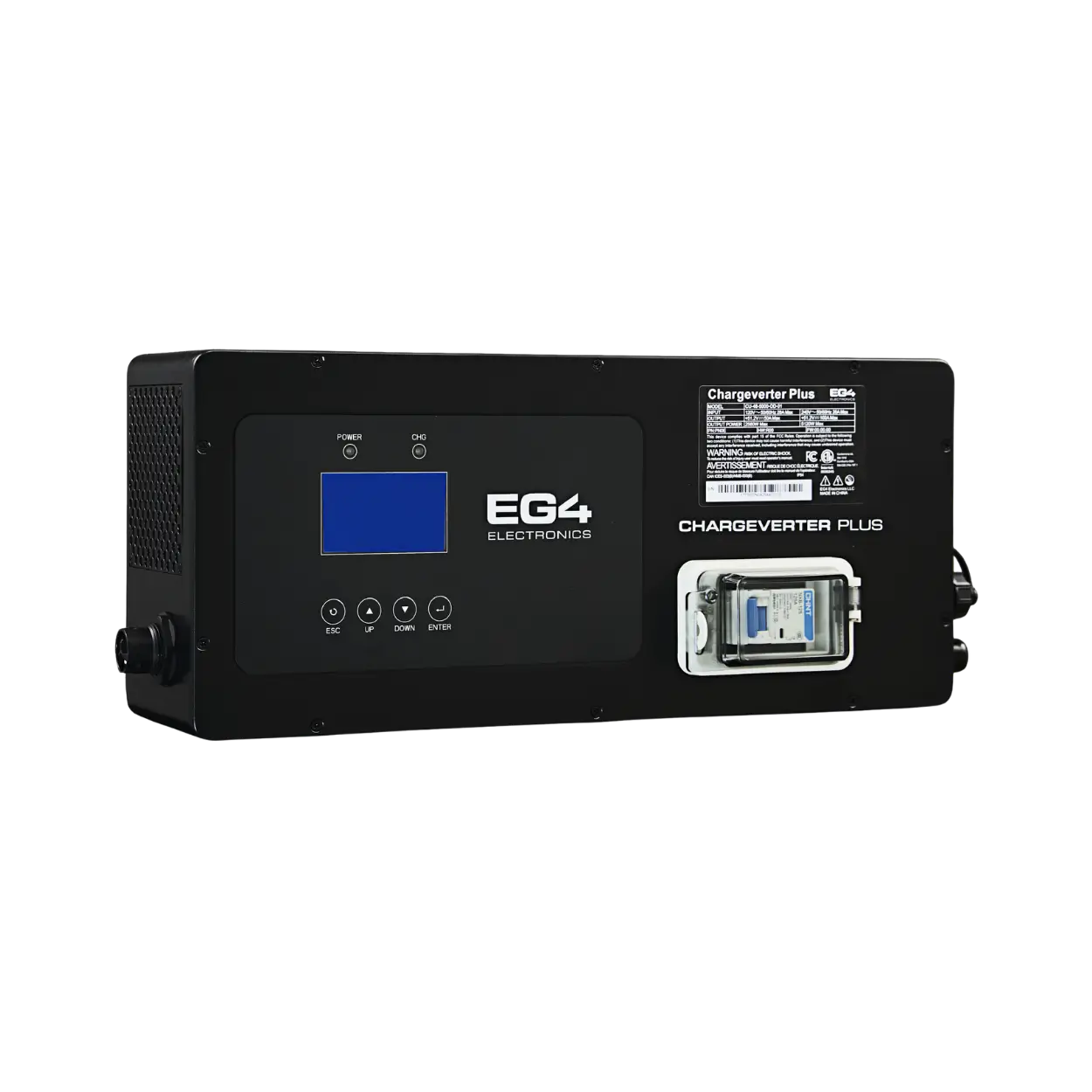

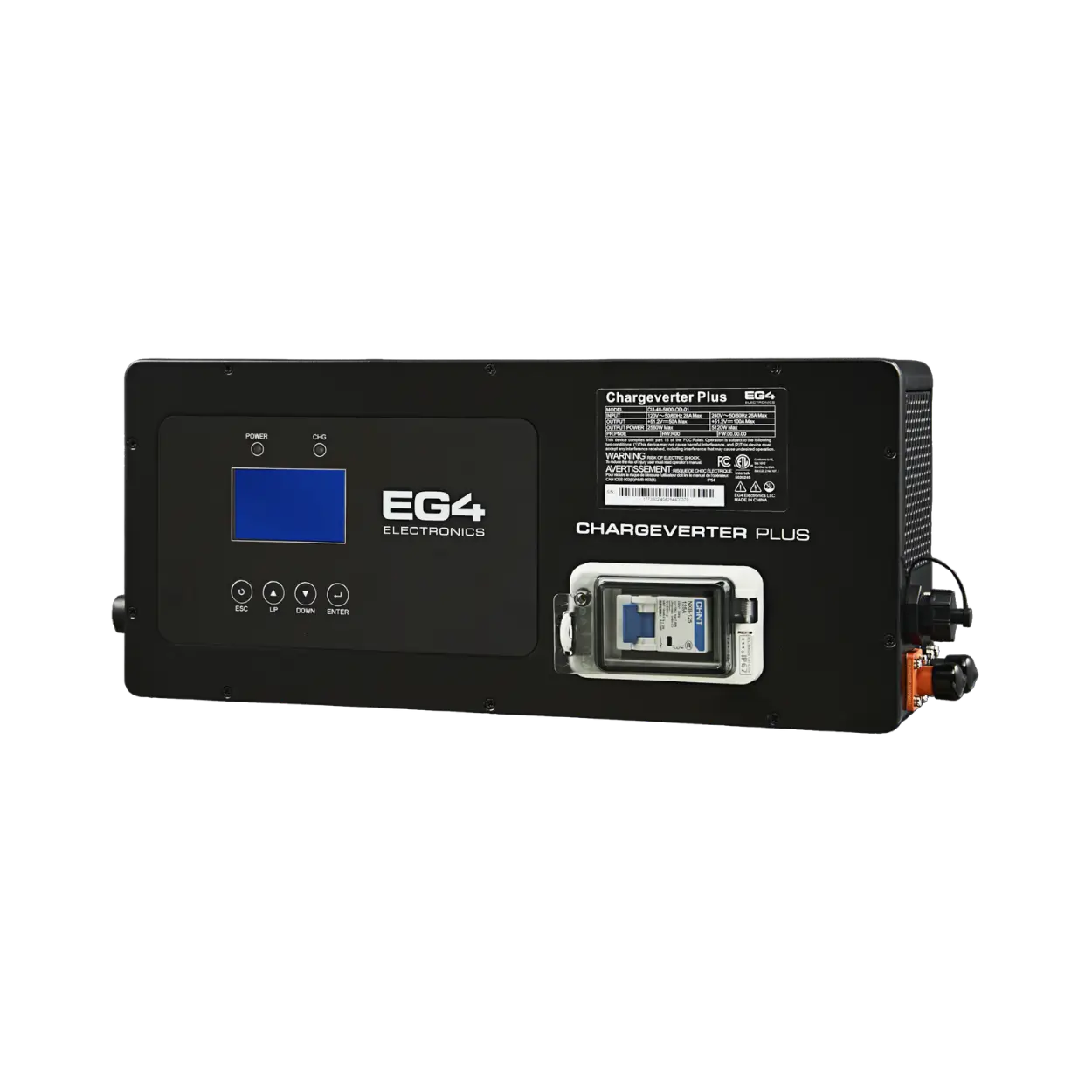

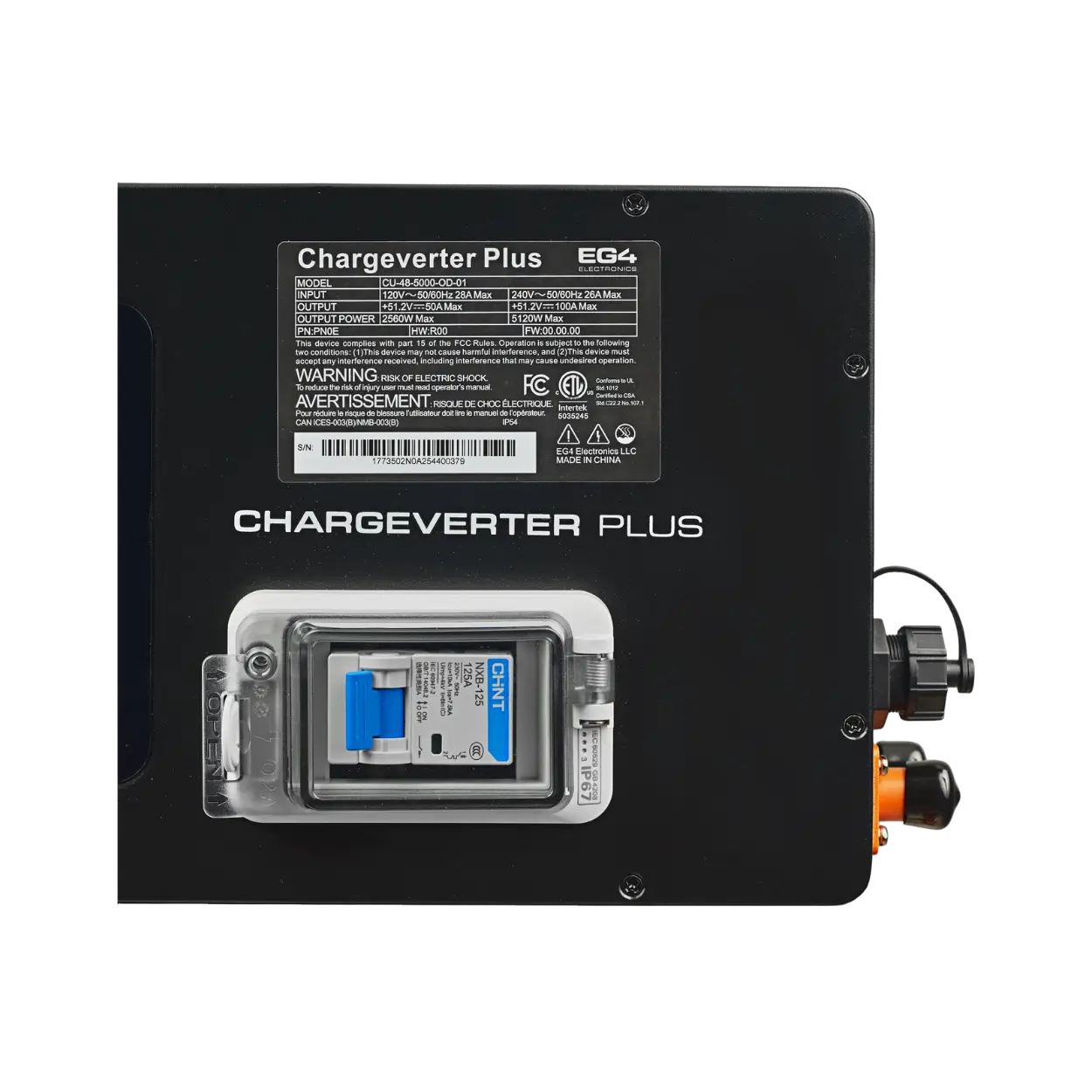

The Chargeverter Plus (EG4CV48V100AIP54) is a UL certified AC to DC converter delivering a stable, 48V DC power output up to 5 kW. Paired with an EG4 ESS, the solution enables seamless integration of high THD power sources, such as small generators or dirty grid power, delivering power conditioning and UPS functionality.

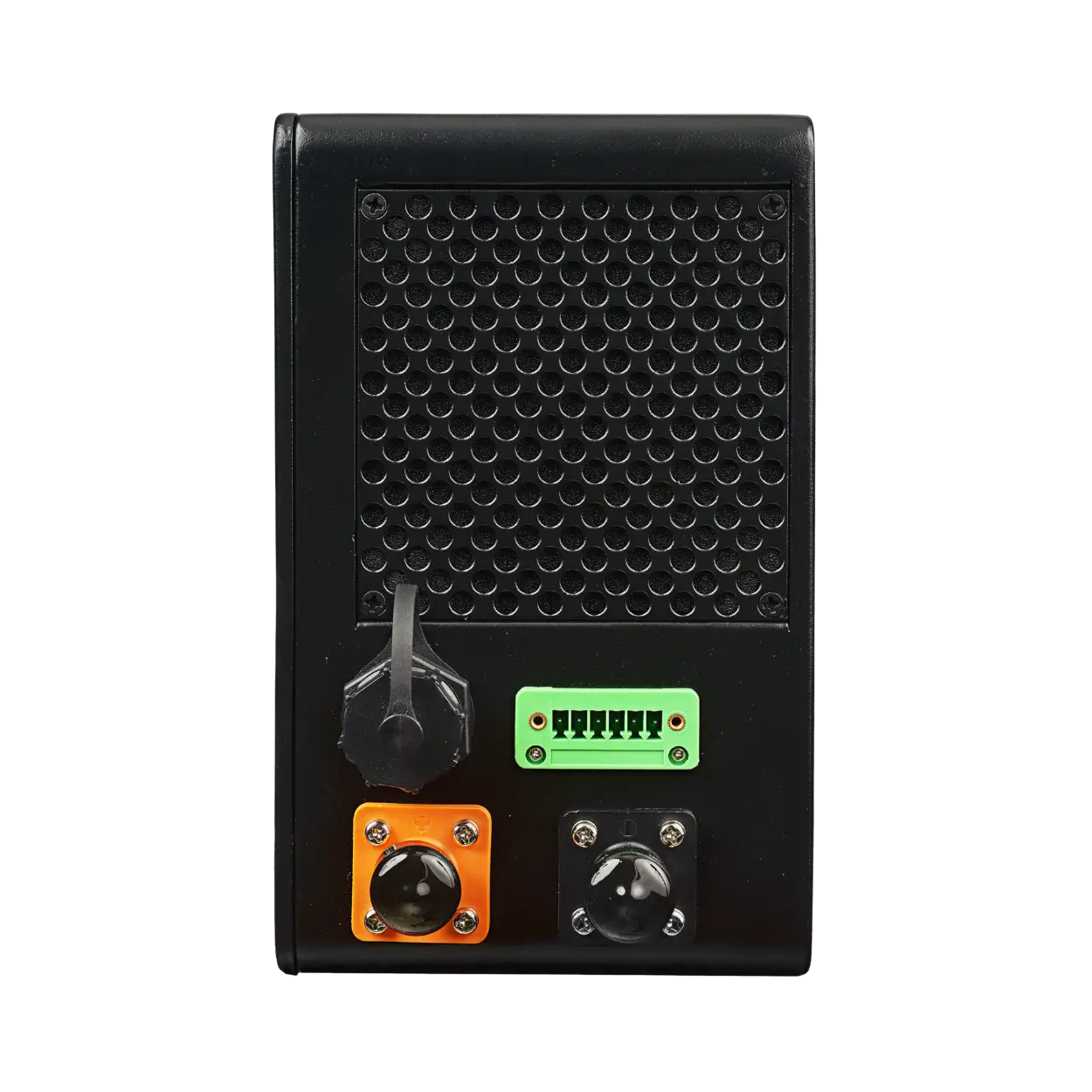

The IP54 rated enclosure of the Chargeverter Plus enables covered outdoor installations even in extreme temperature conditions, with quick connect power and communication ports, enabling fast and easy installation.
UL Certified Power Conversion:
Delivers safe, reliable AC-to-DC charging with a stable 48V DC output up to 5 kW.
High-THD Source Compatibility:
Conditions “dirty” generator or unstable grid power for smoother charging and improved performance.
Outdoor-Ready Protection (IP54 Rated):
Supports covered outdoor installations with enhanced protection against dust and water exposure.
Extreme Temperature Operation:
Built to perform in harsh environments from -40°F to 131°F.
Generator Two-Wire Start + Programmable Warm Up/Cool Down:
Enables automated generator control and smarter run cycles for improved efficiency and reliability.
Charger Output: Stable AC-to-DC conversion for battery charging
Nominal Battery Voltage: 48VDC
Max Continuous Charge Current: 100A at 240VAC, 50A at 120VAC
Battery Voltage Range: 40–60VDC
Maximum Output Watts: Up to 5,000W
AC Input: Compatible with generators and high-THD / unstable grid power
Operating Temperature Range: -40°F to 131°F
