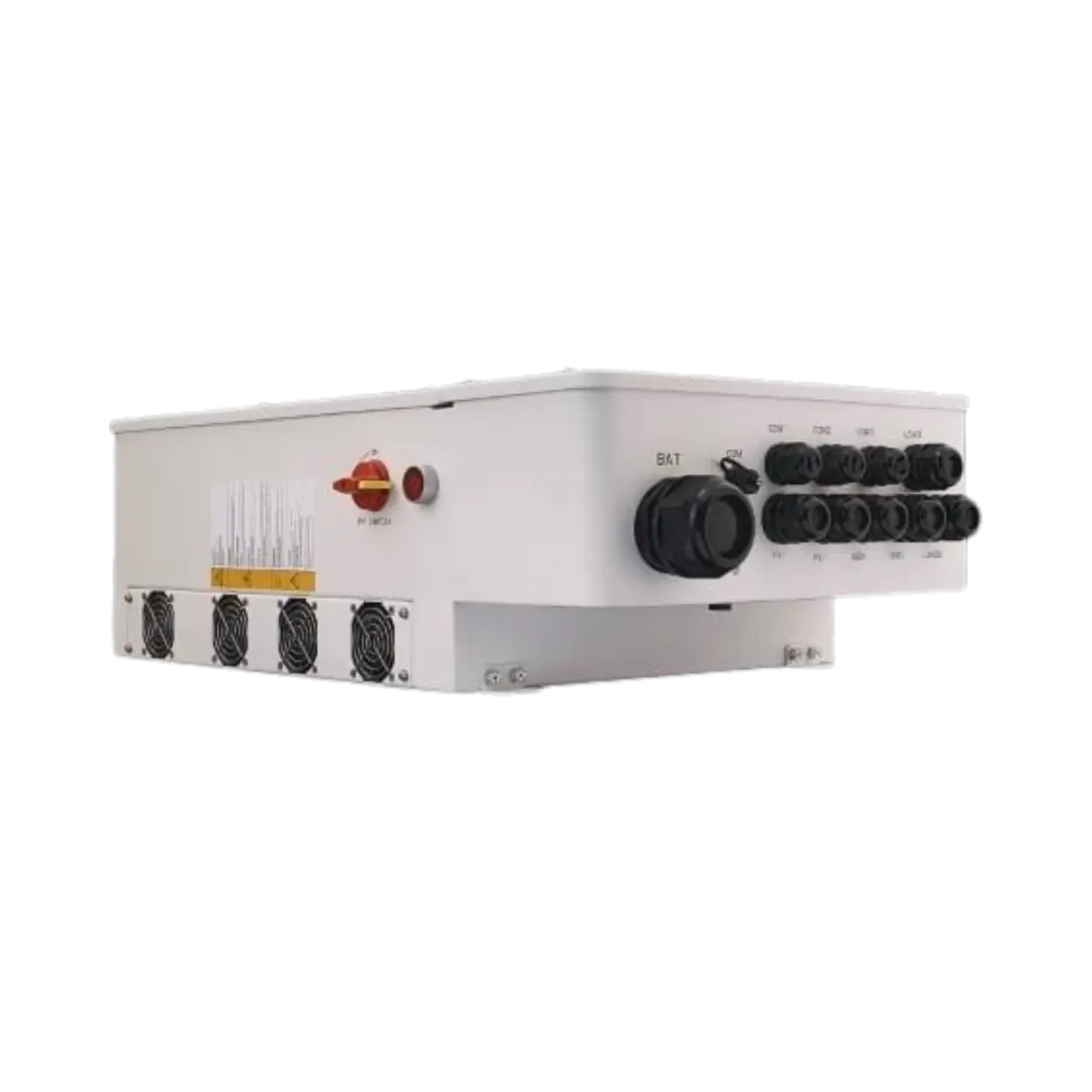

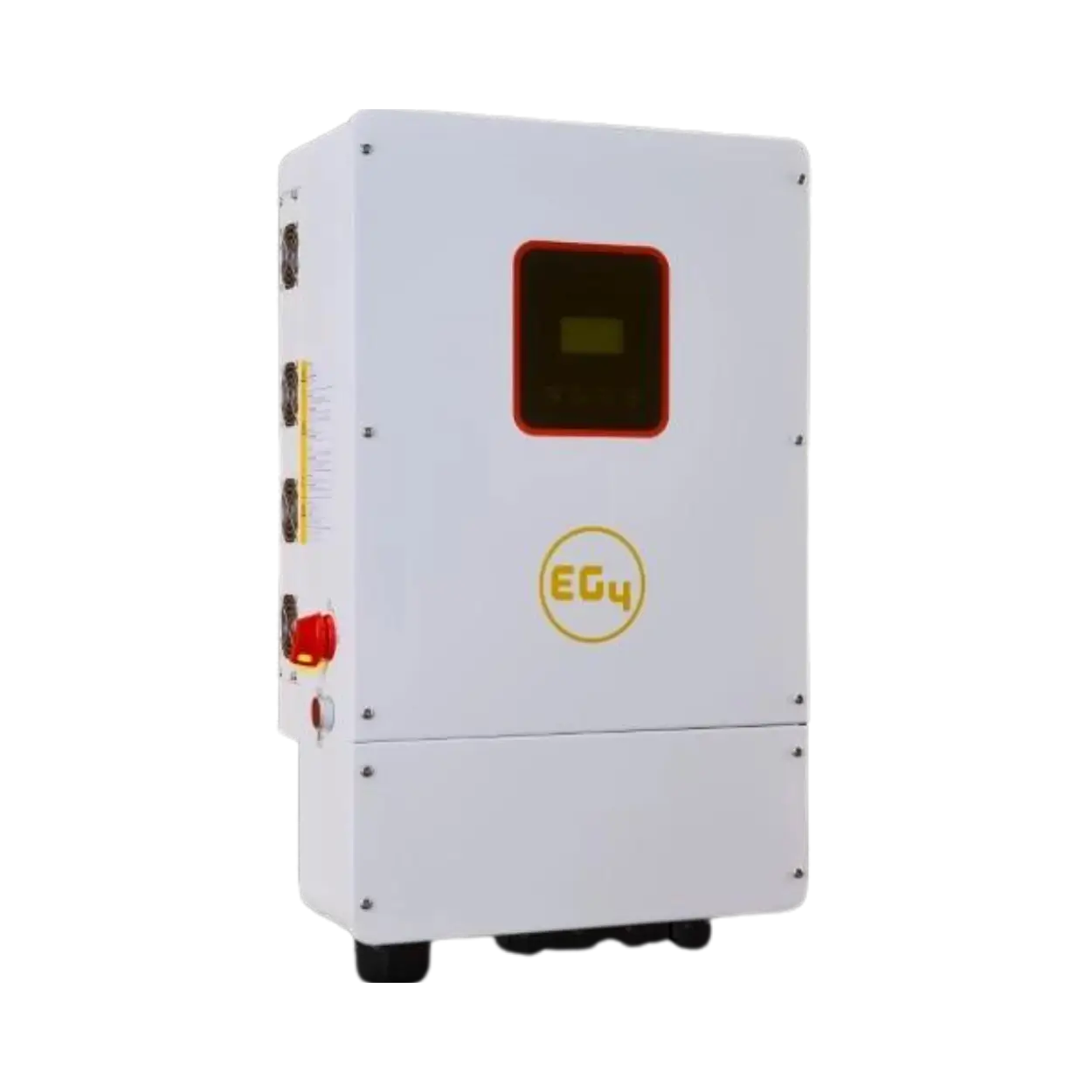

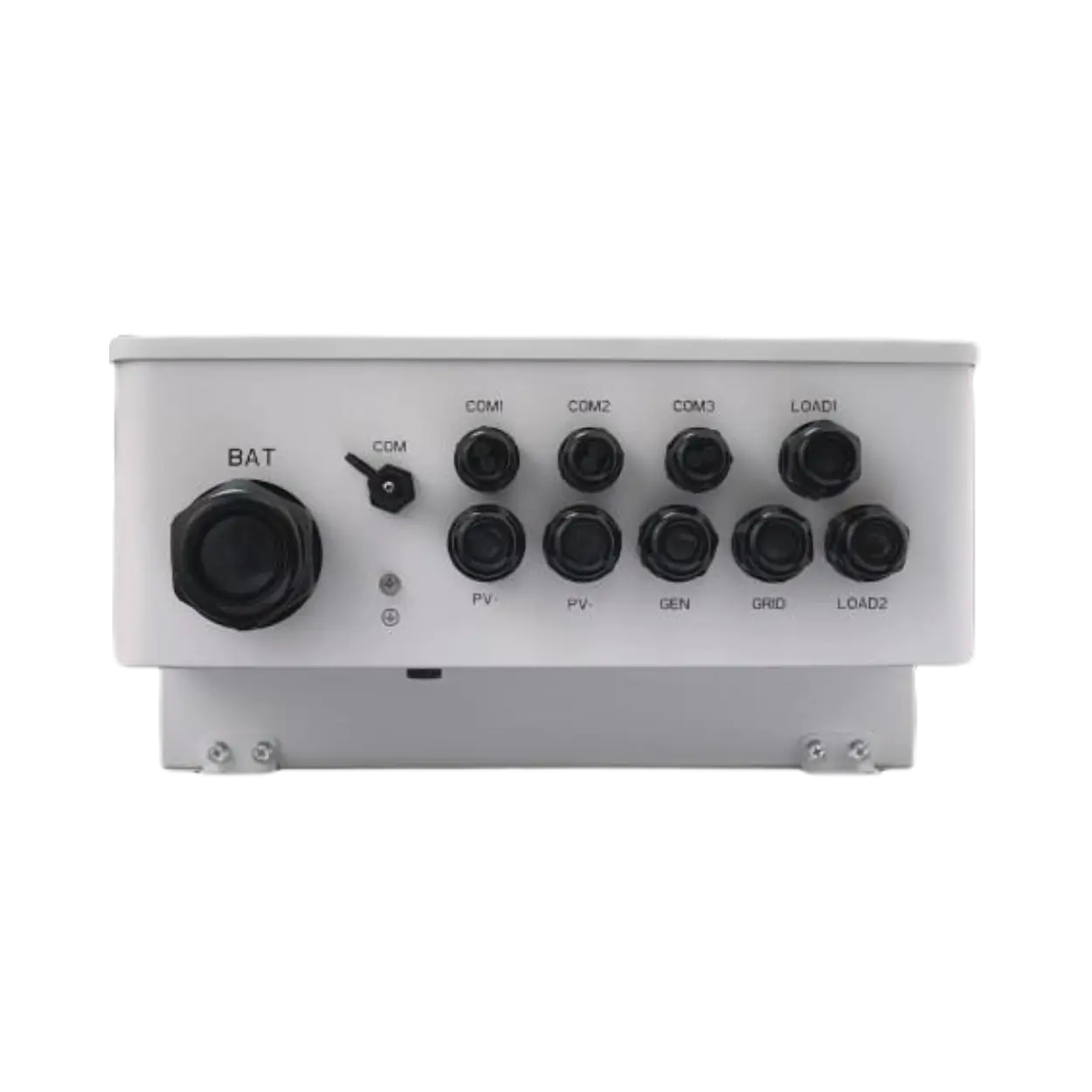

EG4® 8KEXP-240 All-In-One Hybrid Inverter [Legacy Product]
UL1741SA all options, UL1699B, CSA 22.2
The EG4 8k Hybrid Inverter combines the functionality of a grid-tied and an off-grid system together while also eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse! A comprehensive list of certifications and compliances allows this unit to meet or exceed typical electrical regulations. Equipped with a comprehensive LCD display that offers user-configurable and easy-accessible button operation including battery charging current, AC/Solar charger priority, and acceptable input voltage based on different applications.
Utilize solar directly, battery storage, and grid power simultaneously to power your home, RV, or other solar projects with up to 8kW of uninterrupted, continuous output. Or, apply this unit as a backup power system without solar. The EG4 8kW Hybrid Inverter is the culmination of countless hours of research and development, and offers uncompromising utility to both new and existing solar power systems!
- 8000W Continuous Output, 12000w MPPT Solar PV
- Parallel up to 4 Units
- Compatible with all EG4 Batteries
- Overload Protection
- Over Temperature Protection
- Short Circuit Protection
Performance Components
- 8000W Continuous Output, 12000w MPPT Solar PV
- Parallel up to 4 Units
- Overload Protection
- Over Temperature Protection
- Short Circuit Protection
- Compatible with all EG4 Batteries
All-In-One
- Everything needed for Grid Tied, Hybrid, or Off-Grid included.
- Simple plug-and-play install and inverter management.
- Manages power from Solar, Battery, and Grid simultaneously.
- 120/240V Split Phase
Comprehensive Certifications
- Safety – UL1741SA all options, UL1699B, CSA 22.2
- EMC – FCC Part 15 Class
- Grid connection – IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I, II, III
