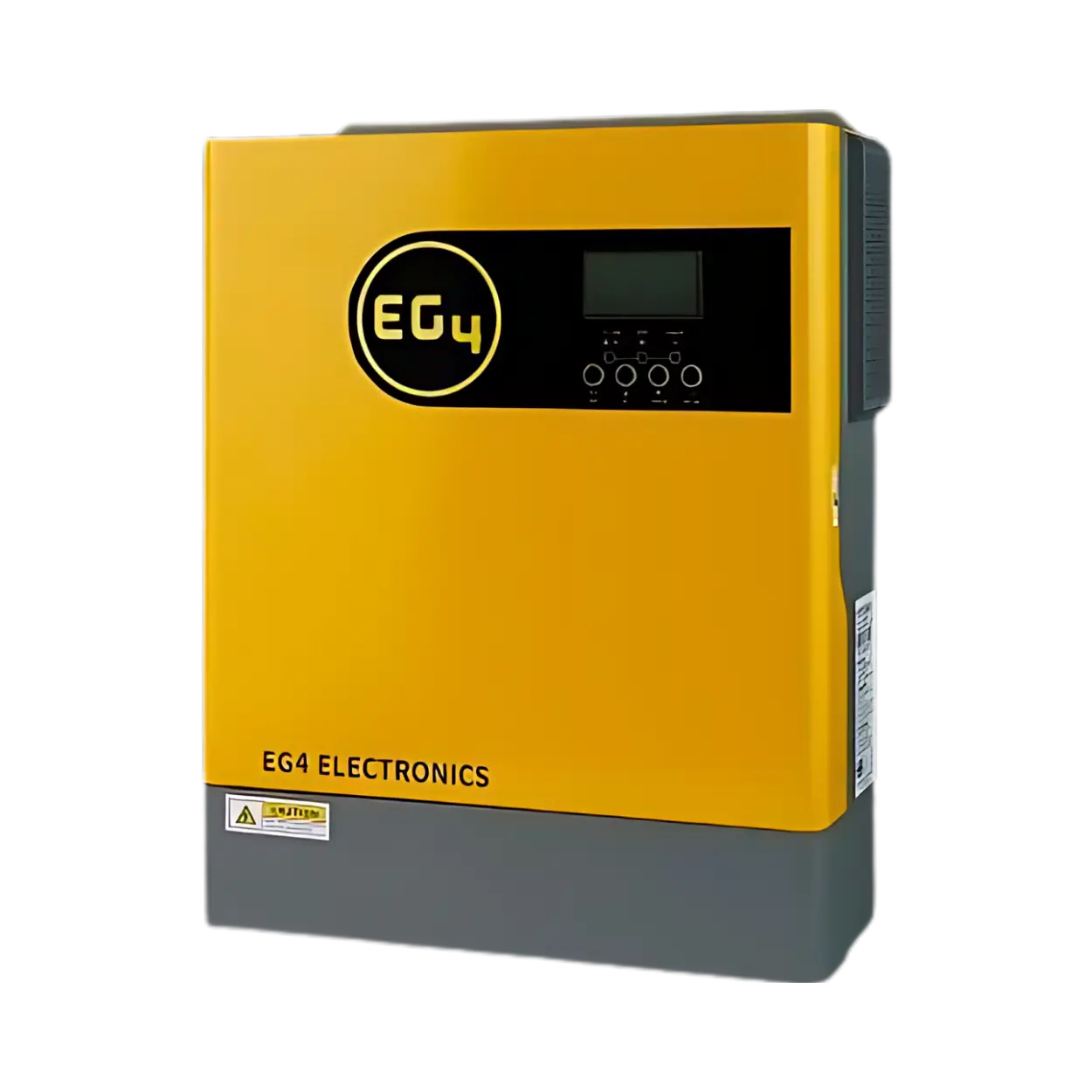

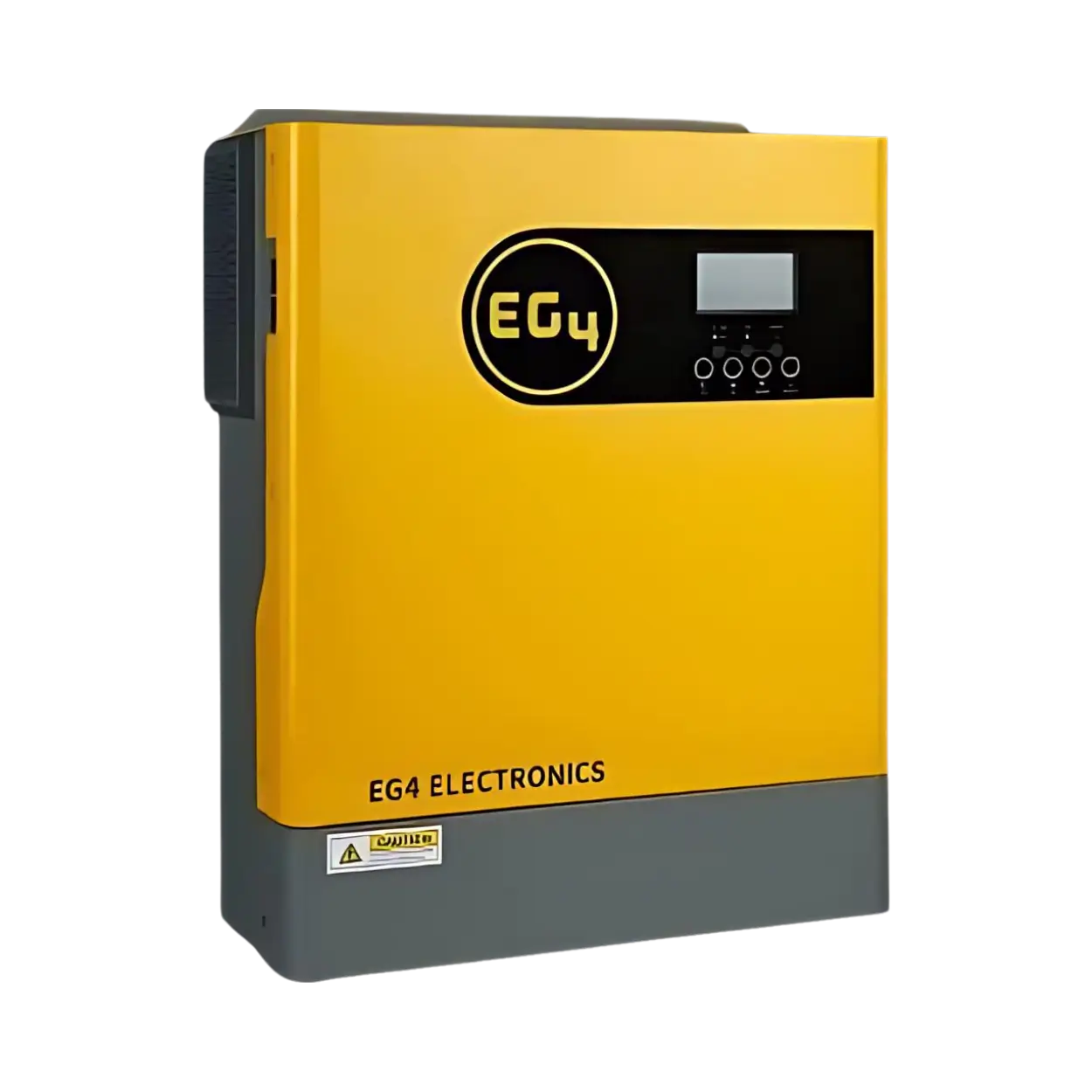

EG4® 3000EHV-48 All-In-One Off-Grid Inverter
MODEL #: 3000EHV-48
SKU: EG4OGI3kW00V2
The EG4 3000 EHV-48 combines the capabilities of a 3000W inverter, MPPT solar charger, and battery charger to provide uninterrupted power support to your system. The inverter/charger’s comprehensive LCD display allows you to easily customize the settings for your system. Additionally, the EG4 3000 EHV-48 supports parallel connection of up to 12 units and offers overload, overtemperature, and short circuit protection, making it safe and efficient.
Versatile All-in-One Design:
Combines inverter, MPPT solar charger, and battery charger functionalities in a compact package.
Larger Battery Terminal Connections:
Supports up to 2 AWG for improved connectivity.
User-Friendly LCD Display:
Easily configurable settings for battery charging, charger priority, and input voltage.
Bonus Kit Included:
Includes accessories like a Wi-Fi adapter, UL-listed breaker, and battery cables.
DC Input Voltage Range: 120VDC – 450VDC
Number of MPPTs: 1
MPPT Efficiency: 97%
Dimensions: 17.6” x 11.6” x 4.1” (44.7×29.5×10.4cm)
Weight: 21.6 lbs. (9.8kg)
Parallel: Up to 12 units for a max of 36kWs of continuous AC power.
