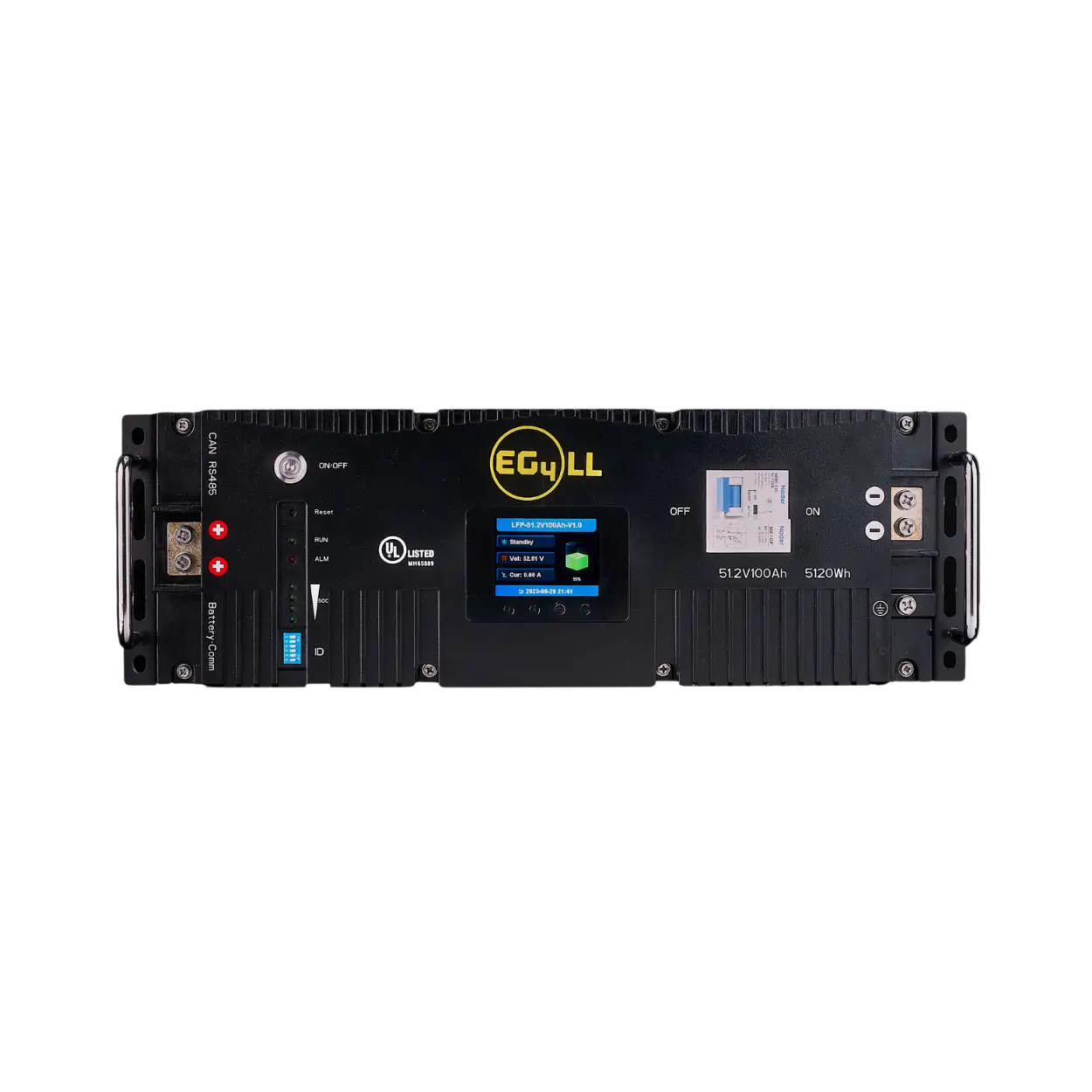

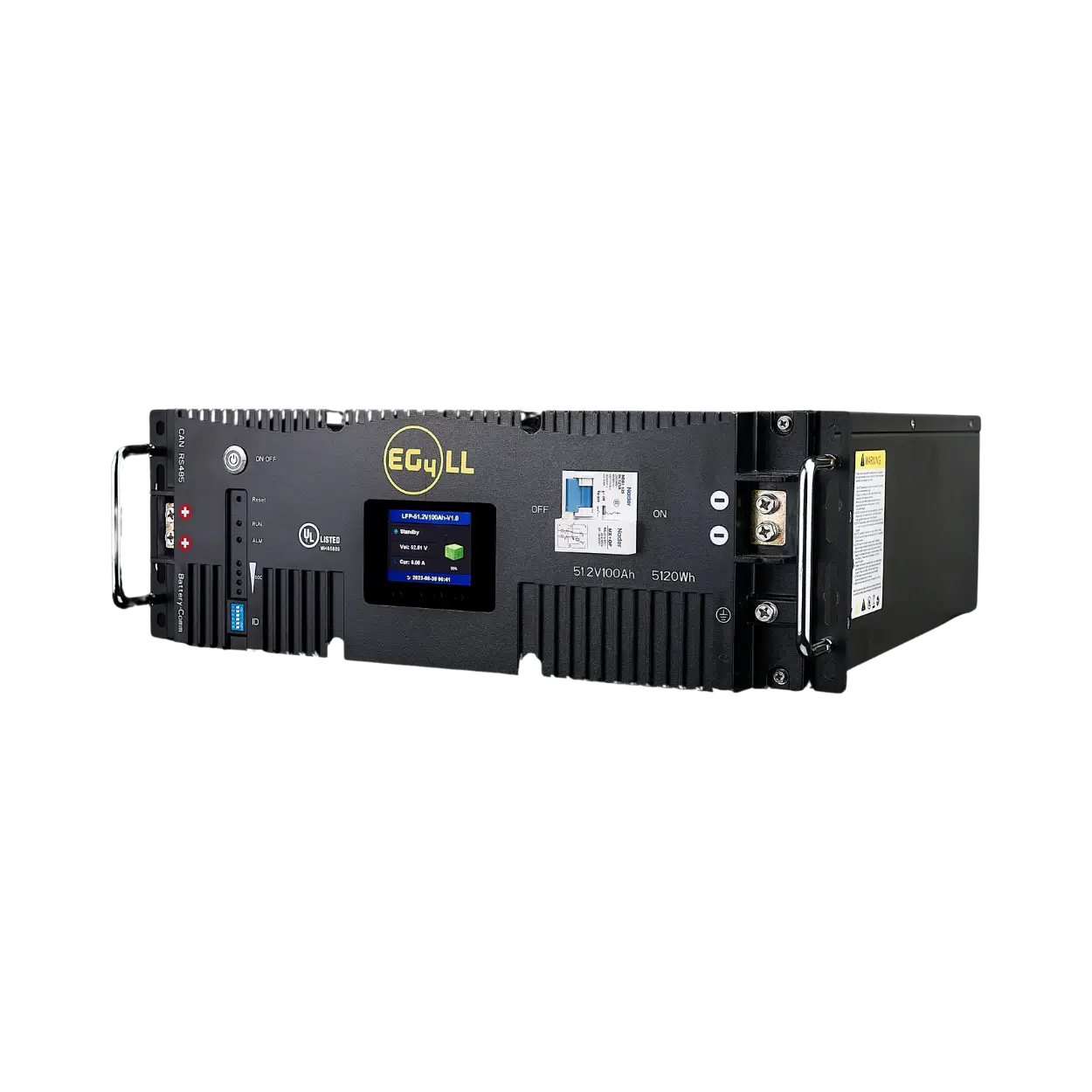

EG4®-LL-S | 48V 100AH Lithium Iron Phosphate Battery
EG4®-LL-S | 48V 100AH Lithium Iron Phosphate Battery
EG4®-LL-S | 48V 100AH Lithium Iron Phosphate Battery
EG4®-LL-S | 48V 100AH Lithium Iron Phosphate Battery

EG4®-LL-S | 48V 100AH Lithium Iron Phosphate Battery

Explore the EG4-LL-S Battery - Your Path to Uninterrupted Power

Welcome to the future of off-grid energy solutions, where independence, reliability, and affordability converge. Meet the EG4-LL-S Battery – a game-changer in the world of energy storage. Engineered for system safety, ensuring code compliance, and improving overall quality of life.

Longevity and Performance:

  • Designed to last for more than 7000 deep charge and discharge cycles. The impressive life cycle of more than 15 years with an 80% daily depth of discharge.

product image
product image

Safety Features:

  • Ensures fail-safe operation in high-risk environments.

  • Protects against rare hardware failure on high-voltage solar charge controllers.

  • Emergency Stop functionality* for immediate power interruption, safeguarding both your equipment and your peace of mind.*requires either additional rsd/ess disconnect or pairing with a supported rapid shutdown inverter in the system fore-stop functionality

On-board LCD Touch Screen:

  • User-friendly interface for easy monitoring and control.

product image
product image

BMS Monitoring:

  • Easy-to-see Battery Management System (BMS) monitoring.

Selectable Closed-Loop Communications:

  • Compatible with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.

product image
product image

Parallel Configuration:

  • Connect up to 64 batteries in parallel for maximum power.

  • 6 DIP switch option preserves BMS communications.

100AH Battery Module Operating Parameters:

  • Voltage: 51.2V

  • Capacity: 100Ah

  • Charging Voltage (Bulk/Absorb): 56.8V (Recommended Setting: 56.2V)

  • Float: 54V

  • Low DC Cutoff: 44.8V (Recommended Range: 47-45.6V)

  • Charging Current: 100A (Max. continuous, Recommended: 30-50A)

  • Discharging Current: 100A (Max. continuous, Recommended: 90A)

product image
product image

Environmental Parameters:

  • Charging Range: 32°F ‒ 113°F (0°C to 45°C)

  • Discharging Range: -4°F ‒ 122°F (-20°C to 50°C)

  • Storage Range: -4°F ‒ 122°F (-20°C to 50°C)

  • Ingress Protection: IP20

Charging/Discharging Parameters:

  • Various protection measures for cell voltage, module voltage, overcharging current, temperature, and more.

  • Emergency stop function for immediate power interruption.

product image
product image

General Specifications:

  • Cell Balance: 120mA

  • Temperature Accuracy: 3%

  • Voltage Accuracy: 0.5%

  • Current Accuracy: 3%

  • SOC (State of Charge) Accuracy: 5%

  • Power Consumption (Sleep & Off Mode): <300uA

  • Power Consumption (Operating Mode): <25mA

  • Communication Ports: RS485/CAN (Customizable)

  • Maximum Modules in Series: 1

  • Maximum Modules in Parallel: 64

  • Dimensions (H×W×D): 6.1 in.×19 in.×17.4 in. (15.5 cm×48.2 cm×44.2 cm)

  • Weight: 99.6 lbs. (45.2 kg)

Standards and Certifications:

  • Module: ETL Listed to UL Standard 9540A:2019

  • Cell: UL:1973

product image
